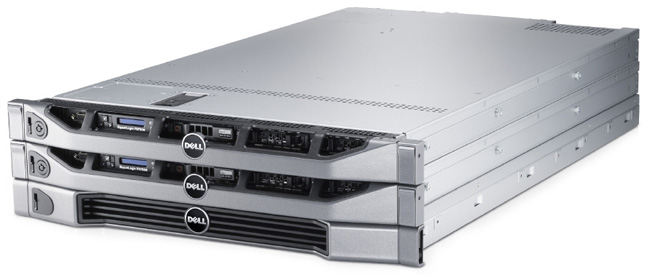

Dell EqualLogic FS7500 Unified Storage Solution
Adds NAS capability to bring scale-out unified storage to the EqualLogic ecosystem

Dell EqualLogic FS7500 Unified Storage Solution

Dell Products
Dell EqualLogic Storage
Dell EqualLogic FS7500 Scale-out Unified Storage
Call for Pricing!
844-356-5140

Overview:

Now you can improve productivity and streamline your IT infrastructure by storing block and file data on a single platform with EqualLogic PS Series arrays and the Dell EqualLogic™ FS7500. The FS7500 is a high performance solution that works with new and existing EqualLogic storage arrays so you can easily configure and manage iSCSI, CIFS, and NFS access to a single flexible storage pool using EqualLogic Group Manager. Its unique scale-out architecture lets you expand storage capacity and/or system performance as your needs change over time.

Grow block and file capacity non-disruptively with EqualLogic™ FS7500, the only scale-out unified storage architecture optimized for midsize and smaller deployments.

  • Expand storage dynamically, modifying block and file capacity without disrupting existing applications and storage systems.
  • Scale a single file share up to 509TB usable capacity.
  • Automate initial setup and configuration with the EqualLogic Group Manager administrator interface.

Feel like an enterprise

Empower your SAN with the EqualLogic™ FS7500 and Dell Fluid File System, the only scale-out unified storage architecture optimized for midsize and smaller EqualLogic storage deployments.

Expand block and file capacity and performance without interruption.The scale-out, unified difference

Expand block and file capacity and performance without interruption. Adding FS7500 controllers and EqualLogic™ arrays to your storage system can increase capacity and helps enhance computer performance as well. The EqualLogic FS7500 enables you to:

  • Manage block and file storage using a single interface.
  • Seamlessly expand Common Internet File Systems (CIFS) and Network File Systems (NFS) with the high-performance Dell™ Fluid File System.
  • Leverage existing hardware and help eliminate forklift upgrades.
  • No 16-100TB file share size limitations — a single file share can be scaled to the full capacity of the backend storage system (up to 509TB usable storage capacity).
  • Dual active/active controller architecture provides high-availability and outstanding performance.
  • Works with new and existing EqualLogic™ PS arrays.
  • Supports iSCSI, CIFS and NFS protocols.
  • Features quotas, user-restorable snapshots, seamless integration with Active Directory, NIS and LDAP, and Network Data Management Protocol (NDMP) backup support.

Dell Fluid File System

  • Supports both scale-out performance and scale-up capacity expansion.
  • Incorporates advance caching, load balancing and multithreading for fast I/O processing.
  • Presents a storage pool as a single file system with a single virtual IP address to the storage client(s).
  • Provides a single global namespace for flexible accessibility.

New opportunity for small and midsize businessesNew opportunity for small and midsize businesses

See what the FS7500 can offer you as a flexible and practical alternative to Windows® file servers. The wizard-based installation tool automates the initial setup and configuration process, helping reduce the time required to provision the NAS system and to create and manage multiple volumes and shares.

The EqualLogic FS7500 scale-out unified storage solution is designed with comprehensive features and functionality that are intuitive and easy to use. In addition, software licensing and future firmware enhancements are included in the base price to help alleviate any concerns about add-on licensing and maintenance costs.

Key Benefits:

Scale-out unified storage, optimized for the midrange

Unstructured file data is a massive portion of IT storage environments — and it's growing faster and faster. Whether it's documents, video or other rich content, decision makers want more of it, and so do your customers. But just adding disks to support that mountain of file data won't help.

The EqualLogic FS7500 helps you solve this problem. Unlike many unified storage solutions that only scale in capacity, the EqualLogic FS7500 can scale capacity and performance. For more capacity, add more EqualLogic arrays; for increased performance, add more FS7500 systems. As you scale your FS7500 solution, you can actually increase the overall performance of your storage environment.

As your needs grow and change, you can dynamically modify your block and file storage capacity without disrupting existing applications and storage systems. The industry's only scale-out solution optimized for mid-sized and smaller deployments, the EqualLogic FS7500 is a key enabler of Dell's Fluid Data Architecture, which delivers solutions that give people the right information at the right time for the right cost.

Expand traditional file share limits

The EqualLogic FS7500 implements Dell Fluid File System (FluidFS), which is designed to optimize file access performance and hardware utilization while eliminating capacity constraints. A key component in Dell's Fluid Data strategy, FluidFS is a high-performance scale-out file system that presents a single file-system namespace through a virtual IP address, regardless of cluster size.

Most NAS solutions have strict limits on file system and share size, but Dell Fluid File System has no such limitations. With the FS7500, you can even expand a single file share up to the capacity of your EqualLogic backend (maximum of 509TB usable storage).

A flexible and practical alternative to Windows File Servers

NAS deployment and management functionality is fully integrated into EqualLogic Group Manager, including administration, monitoring and maintenance operations. Group Manager automates the initial setup and configuration of your FS7500 system, simplifying the process of creating volumes and shares. A FS7500 NAS system can be configured and added to EqualLogic arrays quickly and efficiently.

Advanced features, EqualLogic family values

The EqualLogic FS7500 includes a snapshot capability (separate from iSCSI snapshots). End-users can restore previous versions of files from a directory of these snapshots themselves, without contacting IT, freeing up administrators for more productive work. To help improve storage utilization, the EqualLogic FS7500 features a virtualization layer that lets you expand NAS service dynamically. The FS7500 is easily integrated into your backup environment with support for NDMP backup.

As with all Dell EqualLogic products, the FS7500's new features, software licensing and future firmware enhancements are included in the base price.

High availability file serving

A dual active/active controller architecture and sizable onboard cache give the EqualLogic FS7500 outstanding performance. Each system provides 48GB of battery-protected memory and traffic is automatically load balanced across all nodes.

The EqualLogic FS7500 supports all new and existing EqualLogic arrays. A single FS7500 system can support up to eight EqualLogic PS Arrays with the ability to add another FS7500 system into the same namespace to improve file performance.

Product Views:

GalleryFeatures
Gallery Features

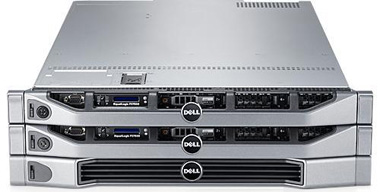

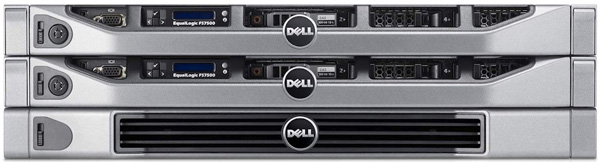

Front View
Front View

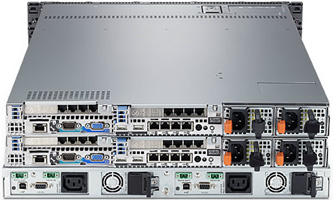

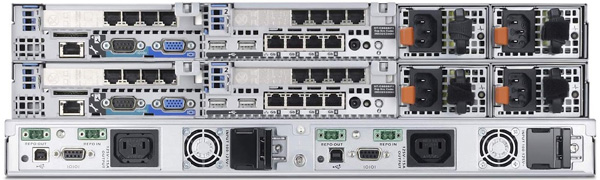

Rear View
Rear View

Dual active/active controller architecture and sizable onboard memory deliver exceptional performance. Four 1Gb IP ports per node are used for front-end CIFS/NFS and four for back-end iSCSI, with 48GB of battery-protected cache and automatic load balancing.
Outstanding performance
Dual active/active controller architecture and sizable onboard memory deliver exceptional performance.
Automatic load balancing
Four 1Gb IP ports per node are used for front-end CIFS/NFS and four for back-end iSCSI, with 48GB of battery-protected cache and automatic load balancing.

Deploy and manage NAS functionalities through EqualLogic Group Manager, including administration, monitoring and maintenance. Each two-node FS7500 system supports up to eight EqualLogic arrays.
EqualLogic Group Manager
Deploy and manage NAS functionalities through EqualLogic Group Manager, including administration, monitoring and maintenance.
Expand your NAS
Each two-node FS7500 system supports up to eight EqualLogic arrays.

Technical Specifications:

PowerVault NX3100
Feature
Protocol support CIFS (SMB 1), NFSv3, NDMP 4, SNMP, NTP, iSCSI, Active Directory, LDAP, NIS (Network Information Service)
Storage arrays supported New or existing EqualLogic PS arrays with version 5.1 or later firmware
Expansion capability Each 2-controller FS7500 system can support up to 8 EqualLogic PS series arrays
Storage nodes Dual controllers operate in an active-active environment mirroring the system's cache
Each controller contains 24 GB memory protected by the EqualLogic FS7500 backup power supply
Management EqualLogic Manager graphical user interface, CLI interface
Front-end NAS connectivity Four 1 Gb IP ports per node for front-end CIFS/NFS connectivity
Backend storage array connectivity Four 1 Gb IP ports per node for back-end iSCSI connectivity
Snapshot capability Redirect-on-write snapshots
Power
Wattage 502 W (Energy Smart); Back-up Power Supply 500 W
Voltage Each controller 90 – 264 VAC, auto-ranging, 47 – 63 Hz ; Backup Power supply 120V models: 90-140V, auto-sensing; 230V models: 180-264V, auto-sensing
Heat dissipation 1712.9 BTU/hr maximum (Energy Smar
Maximum inrush current Under typical line conditions and over the entire system ambient operating range, the inrush current may reach 55 A per power supply for 10 ms or less
Physical
Physical (per controller) Height: 4.26 cm (1.68 in)
Width: 48.24 cm (18.99 in) (includes rack latches)
Depth: 77.2 cm (30.39 in) (includes bezel and power supply handles)
Physical (Back-up power supply, low and high voltage models) Height: 4.2 cm (1.6 in)
Width: 43.4 cm (17.1 in)
Depth: 72.3 cm (28.5 in)
Maximum weight 30 kg (66 lbs)
Environmental
Temperature Operating*: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with a maximum temperature gradation of 20°C per hour
Relative humidity Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing) with a maximum humidity gradation of 10% per hour
Maximum vibration Operating: 0.26 Grms at 5 – 350 Hz for 5 minutes in operational orientations
Storage: 1.54 Grms at 10 – 250 Hz for 10 minutes in all orientations
EqualLogic FS7500 with Dell Fluid File System
Feature
Max system size 509 TB
Max file size 4 TB
Max files ~64 billion
Number of directories ~34 billion
Max NAS file systems 256 per 2-controller FS7500 system, 512 per 4-controller FS7500 solution
Max snapshots per NAS File system 512
Max snapshots 10,000 per 2-controller system or 4-controller solution
Memory per FS7500 2-node system 48 GB
File name length 255 bytes
Max NFS mounts 1024 per 2-controller FS7500 system, 2048 per 4-controller FS7500 solution
Max CIFS shares 1024 per 2-controller FS7500 system, 2048 per 4-controller FS7500 solution
Max Quota rules per FS7500 system (user quotas) 100,000
Max quota rules per volume 512
Max directory depth 512
*Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft

Services:

Dell believes that a well-planned and maintained storage infrastructure can support growing data requirements without the corresponding increase in cost and complexity. Intelligent data management allows organizations to optimize the value of their storage investment with a better use of resources. Dell Data Management Services can help customers design, implement, manage and maintain storage infrastructures that satisfy data availability, retention and recovery requirements.

Dell ProSupport™ — Faster, more reliable support services designed to address the technology challenges you face today. This new support portfolio is focused on your needs, time demands and budgets.

Need professional support services that take care of both you and your employees’ IT needs 7x24? Choose Dell ProSupport to get access to a certified technician in two minutes or less.

Got an IT staff? Choose Dell ProSupport for IT and get tech-to-tech support, along with 7x24 access to Dell-certified technicians.

Dell ProSupport Service Model
Dell ProSupport Dell ProSupport for IT
Designed for organizations with limited or no dedicated IT staff.

Includes:
  • 7x24 direct break-fix hardware and software support for your employees
  • Access to a certified technician in two minutes or les
Designed to provide tech-to-tech support for IT Professionals, Database Administrators and internal Service Desks or helpdesks.

Includes:
  • 7x24 Direct access to Dell Expert Centers
  • Escalation management through Dell’s Global Command Centers
  • Collaborative hardware and software support
Next, Dell ProSupport Options align to the way you use technology — rapidly responding to your needs, protecting your investment, your productivity and your sensitive data, and providing enhanced proactive support services to reduce the risk and complexity of managing your infrastructure.
Speed of Response Protection Premium Proactive
Mission Critical — Perfect for server and storage environments where avoiding unplanned downtime and reducing recovery time through priority response are a must. The package includes priority 4-hour on-site service or optional 2-hour response with 6-hour hardware repair, Dell’s proven Critical Situation process, and emergency dispatch. Data Management and Protection
  • Keep Your Hard Drive helps you retain control of sensitive data
Enterprise-Wide Contract — Provides enhanced proactive capabilities through:
  • Designated Service Delivery Manager
  • Performance benchmarking and custom reporting
  • Planning and assessments
Customization and Setup
Dell Server and Storage Deployment Services
Dell provides a comprehensive set of remote and on-site installation services for PowerEdge™ and PowerEdge SC servers, as well as PowerVault™, Dell | EMC and Dell EqualLogic storage products to help reduce the time required to get your system up and running. These installation services help:
  • Speed up deployment
  • Supply necessary expertise for correct installation
  • Minimize disruptions to your business
Training
Comprehensive Training
Get the skills you need to keep pace in today's competitive IT environment with comprehensive training courses. Dell offers a vast array of instructor-led classes and online training courses in a range of topics from server maintenance to in-depth technical overview of specific systems.
