Dell PowerVault MD1220 Direct Attached Storage
High-performance, energy-efficient direct attached storage array

Dell PowerVault MD1220 Direct Attached Storage

Dell Products
Dell Direct Attached Storage
Dell PowerVault MD1220 Direct Attached Storage
Call for Pricing!
844-356-5140

Overview:

The Dell PowerVault™ MD1220 direct-attached storage array is the second generation of our energy efficient, small form factor (SFF), 2.5-inch drive expansion enclosure. The PowerVault MD1220 offers seamless expansion for PowerEdge™ servers while providing the Input/Output Operations per Second (IOPs) needed to satisfy performance-intensive applications.

Energy-efficient storage-expansion array that provides the performance to satisfy demanding single- server applications.

  • Seamless server expansion for 6Gb/s SAS environments
  • Supports performance-intensive applications such as Web server, database and e-mail
  • 2.5-inch small-form-factor (SFF) array, energy-efficient array

At a Glance

PowerVault MD1220 is a direct-attached, energy-efficient storage array that provides the performance to satisfy demanding applications.

Expansion for Performance-Intensive, Single-Server Applications

PowerVault MD1220 direct-attached storage array is the second generation of Dell's energy-efficient, small-form-factor (SFF), 2.5-inch drive expansion enclosure. The PowerVault MD1220 offers seamless expansion for Dell PowerEdge servers with , providing IOPs needed to satisfy performance-intensive application. This expansion array can support 24, 2.5-inch SAS hard-disk drives (HDDs) or solid-state drives (SSDs)1 in a 2U array and expands up to 8 arrays per adapter, so you don't have to trade capacity for performance.

Optimizing Performance, Enhancing Security While doubling the Throughput: The PowerVault MD1220 leverages SAS 2.0 technology, which enables double the throughput over previous generation, with a 6Gb/s SAS interface and offers performance optimization with automatic I/O load balancing across redundant paths and enhanced security, over previous generation with new self-encrypting drive (SED) support.

Improved efficiency: The PowerVault MD1220 improves energy efficiency over previous generation, with new 80PLUS Silver Certified power supplies. This enhancement augments the efficiencies already gained with 2.5-inch drives and variable speed fans.

Satisfying Even the Most Performance-Hungry ApplicationsSatisfying Even the Most Performance-Hungry Applications

The PowerVault MD1220 direct-attached storage array offers compelling performance.

  • 6Gb/S SAS: With up to 35-percent increase in IOPs and twice the throughput of last-generation arrays, the PowerVault MD1220 can satisfy even the most performance-intensive applications, such as Web hosting, database and e-mail.
  • Solid State Drives: Pair the increased IOPs and throughput of 6Gb/s SAS with support for solid state drives (SSD), which have 3x the IOPs performance over 15K SAS2 drives and offer an ideal solution for applications that rely on random block access.
  • Automatic I/O Load Balancing: Further optimizing the performance of the PowerVault MD1220, the PERC H800 Host-RAID adapter has automatic I/O balancing between the server and storage array. The PERC H800 can detect when a single path starts to get saturated and then balance the I/O traffic across both paths.
  • The PowerVault MD1220 direct-attached storage array can deliver the speed, performance and reliability to satisfy performance intensive single server applications that store active and frequently changing information.

Your Energy-Conscious Storage

The PowerVault MD1220 is a small-form-factor (SFF) array that helps manage power, heat and space consumption in your data center. In fact, 2.5-inch disks consume up to 50% less power and 70% less space than 3.5" drives.

Additionally, the MD1220 power supplies are 80PLUS® Silver Certified, and, with variable-speed, temperature-controlled fans, are designed to deliver optimal performance and energy efficiency

Keeping Your Data Safe

Access and accuracy of your data are key to the success of any business. The PowerVault MD1220 has been engineered to help maximize your uptime and the security of your data.

Redundant Path with I/O Load Balancing Redundant Path with I/O Load Balancing: You can rest assured that your data will be available when you need it. Even if a single cable path fails from one port of the PERC H800, you will continue to have access to your data through the second port.

Self-Encrypting Drives (SED) Self-Encrypting Drives (SED): Self-encrypting drives help to ensure that your data is secure with drive-level encryption, so, even if a drive is removed from its storage system or the server in which it is housed, the data on the drive is encrypted and rendered useless to anyone who attempts to access it without the appropriate security authorization. Additionally, SED supports instant secure erase of drives, which permanently removes data when repurposing or decommissioning drives.

Hot-Swappable Drives Hot-Swappable Drives: With hot-swappable drives, you can remove and replace drives even when your system is operating. No need to shut down, and no need to reboot: New drives are available right away.

Leveraging the PERC H800 RAID ControllerLeveraging the PERC H800 RAID Controller

The PowerVault™ MD1220 leverages the latest PCI Express 2.0 interface, offering excellent performance for enterprise.

The configuration of the PERC H800 Host-RAID adapter helps to increase reliability and fault tolerance by enabling the software to recognize the entire array as a single unit, regardless of how many disks are activated for storage in the array. With the PERC H800, customers can choose the RAID option that supports their application. The PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.

Dell™ PowerVault MD1220 storage array is engineered to work optimally with Dell PowerEdge™ servers. Dell OpenManage™ Storage Manager Software can manage both the external array and internal storage within the server itself. The PowerVault MD1220 is supported behind the following servers: R210, T310, T410, R410, R510, R610, T610, R710, T710, R910, R810. See PERC H800 server compatability matrix for a list of currently supported servers.

Streamlining storage management through a single, common interface helps reduce resource load on the system, and is easier to navigate for the user as well. The PowerVault MD1220 utilizes the same 2.5-inch drives as 11th Generation PowerEdge servers, and the same power supplies and fans as the PowerVault MD1200, helping to reduce the number of spares required.

Key Benefits:

Impressive performance

The PowerVault MD1220 can deliver the speed, performance and reliability to satisfy data-hungry, performance-intensive, single-server applications that store active and frequently changing information.

  • 6Gb/s SAS: With a 35% increase in IOPs capability and twice the throughput of the previous generation of arrays, the PowerVault MD1220 can satisfy even the most performance-intensive applications such as web, database, and email hosting.
  • Solid State Drives: Pair the increased IOPs and throughput of 6Gb/s SAS with support for Solid State Drives (SSDs), which have 3x the IOPs performance over 15K SAS drives1, and you have an ideal solution for applications that rely on random-block access.
  • Automatic I/O Load Balancing: Further optimizing the performance of the PowerVault MD1220, the PERC H800 HostRAID adapter has automatic I/O load balancing to detect when a single path starts to get saturated and balances the I/O traffic across both paths.

Maximum efficiency

The PowerVault MD1220 improves energy efficiency over the previous generation with new 80PLUS® Silver Certified power supplies. This enhancement augments the power, heat, and space efficiencies already gained from the Small Form Factor (SFF) array. In fact, 2.5-inch disks consume up to 50% less power and 70% less space than 3.5-inch drives. Combine this with variable-speed and, temperature-controlled fans, and the MD1220 is optimized to deliver performance in an energy-efficient in a single array.

Keeping your data safe

Access and accuracy of data is key to success for any business. The PowerVault MD1220 has been engineered to maximize uptime and the security of your data.

  • Redundant Path with I/O Load Balancing: Even if a single cable path fails from one port of the PERC H800, you will continue to have access to your data through the second port.
  • Self Encrypting Drives (SED): With drive-level encryption, if a drive is removed from its storage system or the server it is housed in, the data on that drive is encrypted and useless to anyone who attempts to access it without the appropriate security authorization. Additionally, SED supports Instant Secure Erase of drives which permanently removes data when repurposing or decommissioning drives.
  • Hot Swappable Drives: With hot swappable drives, you can remove and replace drives even when your system is operating; no need to turn it off and no need to reboot—new drives are available right away.

Affinity with PowerEdge

The Dell PowerVault MD1220 storage array is engineered to work optimally with Dell PowerEdge servers, as follows:

  • The configuration of the PERC H800 HostRAID adapter enables the software to recognize all storage as a single unit, helping to increase reliability and fault tolerance.
  • Dell OpenManage™ Storage Manager software can manage both the external array and internal storage, streamlining storage management through a single, common interface. This helps reduce resource load on the system and enables easier navigation for the user.
  • The PowerVault MD1220 leverages the same 2.5-inch drives as 11G PowerEdge servers and the same power supplies and fans as the PowerVault MD1200, reducing the cost of spares.

Product Views:

GalleryFeatures
Gallery Features

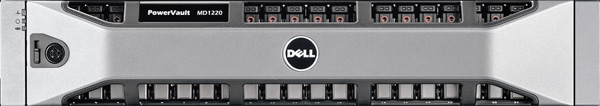

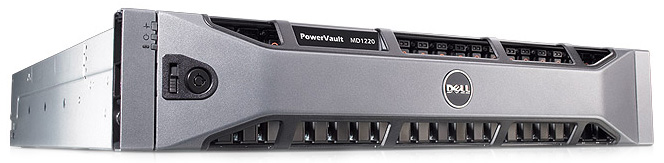

Front View
Front View

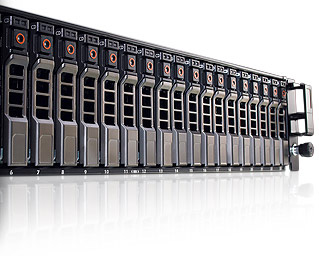

Front Open (24 Drives) View
Front Open (24 Drives) View

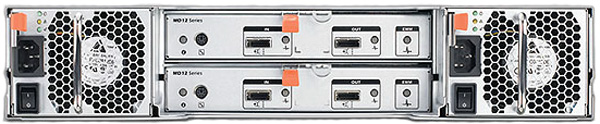

Rear View
Rear View

2.5" drives, variable-speed fans and 80PLUS Silver Certified power supplies - ideal for energy-conscious customers. Dual-port controllers for redundant path, redundant power supplies and fans.
Energy-effient storage
2.5" drives, variable-speed fans and 80PLUS Silver Certified power supplies - ideal for energy-conscious customers.

Redundant and Reliable
Dual-port controllers for redundant path, redundant power supplies and fans.
High-density diirect-attached storage array with 24 - 2.5" drives Expand up to 192 drives behind a PERC H800 Host-RAID adapter.

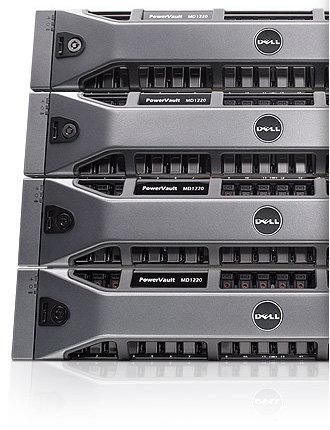

Small Form Factor Array
High-density diirect-attached storage array with 24 - 2.5" drives

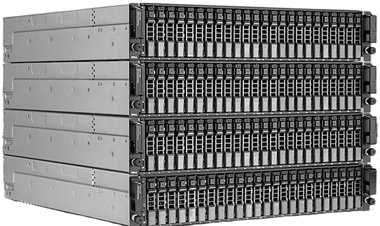

Supports Future Growth
Expand up to 192 drives behind a PERC H800 Host-RAID adapter.

Technical Specifications:

PowerVault MD1220
Features
PERC H800 PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU (transportable battery-backup unit)
Drives Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7200, 10K, 15K rpm and SAS Solid State Drive (SSDs)
Drive Performance and Capacities 2.5" SAS HDDs
10,000 RPM 6Gb/s SAS drives available in 300GB and 600GB
2.5" SAS SSDs1
3Gb/s SSD available in 149GB
Maximum Capacity (per enclosure) 12TB using twenty-four (24) 500GB 7200 RPM 6Gb/s SAS HDDs
Expansion Capabilities PERC H800 enables expansion to 8 enclosures, 4 per port
Host Connectivity
Unified Mode Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H800 (4 enclosures per port, single path)

Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H800 (4 enclosures connected to both ports via redundant path cabling)

Split-Mode/Dual-Host Access Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 though 11 and a separate connectivity to drives 12 through 23
Enclosure Management Modules and RAID levels
Enclosure Management Modules (EMM) 2 EMM provide redundant enclosure management capability
RAID Levels 0, 1, 5, 6, 10, 50 and 60
Back-Panel Connectors (per EMM)
Host Connectivity 1 SAS (SFF 8088) IN connector for connection to the host
Expansion Connectivity 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
Service Management 1 6-pin UART mini-DIN connector (for factory use only)
Power Supplies (per supply)
Wattage 600 W
Maximum Heat Dissipation 188 W
Input Voltage Range 100-240 VAC, auto-sensing
Frequency Range 50/60 Hz
Amperage 8.6 A at 100 V, 4.3 A at 240 V
Available Hard Drive Power (per slot)
Supported Continuous Consumption up to 1.2 A at +5V
up to 0.5 A at +12V
Physical
Height x Width x Depth 8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 54.1cm (29.1 inches)
Weight 23.31 kg (51 lb) (maximum configuration)
8.61 kg (19 lb) (empty)
Environmental
Temperature Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
Relative Humidity Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)
Altitude Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)

1Based on testing performed by Dell Labs in comparing Dell PERC H800 with PowerVault MD1220 to PERC 6/E with PowerVault MD1120.

Services:

Having the right backup solution is key to protecting your critical information. So is having the right support. Dell ProSupport™ is a portfolio of globally consistent, customer-driven support services that provides businesses of all sizes with flexible, reliable and easier support solutions.

Dell ProSupport starts with the Dell ProSupport for IT service model designed for IT professionals like you. Dell ProSupport for IT provides:

  • 24x7 Direct access to Dell Expert Centers
  • Fast-track dispatch for Dell certified technicians
  • Escalation management through Dell’s Global Command Centers

Next, Dell ProSupport Options align to the way you use technology — rapidly responding to your needs, protecting your investment, productivity and sensitive data, and providing enhanced proactive support services to reduce the risk and complexity of managing your infrastructure.

Speed of Response Protection Premium Proactive
Mission Critical — Perfect for server and storage environments where avoiding unplanned downtime and reducing recovery time through priority response are a must. The package includes priority 4-hour on-site2 service or optional 2-hour response with 6-hour hardware repair, Dell's proven Critical Situation process and emergency dispatch. Keep Your Hard Drive — Enables you to control your sensitive data by retaining your hard drive and helps you comply with current data privacy regulations to help mitigate risks associated with regulatory or civil liabilities. Enterprise-Wide Contract — Provides enhanced proactive capabilities through:
  • Designated Service Delivery Manager
  • Performance benchmarking and custom reporting
  • Planning and assessments

Proactive Maintenance — Maximizes the availability and stability of your infrastructure proactively. The package includes a detailed system assessment and implementation of driver or firmware updates and upgrades for your server or storage systems.

Remote Advisory Options —Provides telephone and Internet access to technical expertise for specialized applications and solutions such as Microsoft® Exchange, Virtualization and more.

Basic Hardware Warranty
Basic Support
Ideal for nonessential application environments. This service offers business-hour, phone-based support* for hardware-only issues with Next Business Day On-Site Service following completion of phone-based troubleshooting.
Additional Service Offerings
Comprehensive Storage Training and Certification
Through comprehensive storage training courses, Dell provides expertise in implementing Dell storage into an existing IT infrastructure. If you are interested in validating or maintaining your skill sets for company compliance, the Dell Certified Network Storage Networking Professional Certification path is available.

Backup and Recovery
To sustain the continued operation of your storage solution, you should engineer availability, security and reliability into every process from the outset. Dell can provide backup and recovery solutions that help ensure adequate procedures are in place to minimize or avoid data loss.

Storage Consolidation
Our storage experts analyze existing infrastructure, operational practices and technical readiness to develop a roadmap for conducting a storage consolidation. They will also develop a detailed consolidation deployment plan as well as a validated and refined solution design.

Dell PowerVault MD Storage Arrays Compare:

Dell PowerVault MD 3200/3600/1200 Series of storage arrays simplify IT by optimizing your data storage architecture and insuring the availability of your data. This frees up valuable resources to help reduce costs and make innovation a daily practice. Managing the relentless growth of application data can strain IT organizations, whose strategic roles have expanded even in the face of contracting budgets. The Dell PowerVault MD 3200/3600/1200 Series of storage arrays address these challenges with versatile solutions that are optimized for smaller-scale storage consolidation, flexible virtualization projects and high business continuity. The PowerVault MD 3200/3600/1200 Series includes high-performance SAN and direct-attached storage arrays, high-capacity expansion enclosures and robust management software that together deliver exceptional flexibility, scalability and value. To help suit your particular business requirements, MD 3200/3600 Series arrays offer iSCSI, Fibre Channel or SAS technology.


  MD1200 MD1220 MD3200 MD3220 MD3200i
MD1200 MD1220 MD3200 MD3220 MD3200i
Drives 12 24 12 24 12
Max. Drives 96 192 96 96 96
Drive Type 3.5-inch 6 Gbps SAS and NL SAS HDDs, 3.5-inch
3 Gbps SSDs
2.5-inch 6 Gbps SAS and NL SAS HDDs, 2.5-inch
3 Gbps SSDs
3.5-inch 6 Gbps SAS and NL SAS HDDs, 3.5-inch
3 Gbps SSDs
2.5-inch 6 Gbps SAS and NL SAS HDDs, 2.5-inch
3 Gbps SSDs
3.5-inch 6 Gbps SAS and NL SAS HDDs, 3.5-inch
3 Gbps SSDs
Max. Cache Controller Dependent Controller Dependent 4GB (2GB per controller) 4GB (2GB per controller) 4GB (2GB per controller)
Host Interface Two 6Gbps SAS Two 6Gbps SAS Eight x 6Gbps SAS (4 per controller) Eight x 6Gbps SAS (4 per controller) Eight x 1Gbps Ethernet (4 per controller)
Max. Hosts Controller Dependent Controller Dependent 8 8 32
Max. HA Hosts Controller Dependent Controller Dependent 4 4 32
Form Factor 2U 2U 2U 2U 2U
Management Software OpenManage™ Storage Management OpenManage™ Storage Management MD Storage Manager MD Storage Manager MD Storage Manager
Optional Features N/A N/A Snapshot, Virtual Disk Copy, Self-encrypting drives, High Performance Tier Snapshot, Virtual Disk Copy, Self-encrypting drives, High Performance Tier Snapshot, Virtual Disk Copy, Self-encrypting drives, High Performance Tier
Server Support Dell PowerEdge only Dell PowerEdge only Dell servers Dell servers Industry-standard servers
OS Support Controller Dependent Controller Dependent Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer
  MD3220i MD3600i MD3620i MD3600f MD3620f
  MD3220i MD3600i MD3620i MD3600f MD3620f
Drives 24 12 24 12 24
Max. Drives 96 96 96 96 96
Drive Type 2.5-inch 6 Gbps SAS and NL SAS HDDs, 2.5-inch
3 Gbps SSDs
3.5-inch 6 Gbps SAS and NL SAS HDDs, 3.5-inch
3 Gbps SSDs
2.5-inch 6 Gbps SAS and NL SAS HDDs, 2.5-inch
3 Gbps SSDs
3.5-inch 6 Gbps SAS and NL SAS HDDs, 3.5-inch
3 Gbps SSDs
2.5-inch 6 Gbps SAS and NL SAS HDDs, 2.5-inch
3 Gbps SSDs
Max. Cache 4GB (2GB per controller) 4GB (2GB per controller) 4GB (2GB per controller) 4GB (2GB per controller) 4GB (2GB per controller)
Host Interface Eight x 1Gbps Ethernet (4 per controller) Four x 10Gbps Ethernet (2 per controller) Four x 10Gbps Ethernet (2 per controller) Eight x 8Gb/s Fibre Channel (4 ports per controller) Eight x 8Gb/s Fibre Channel (4 ports per controller)
Max. Hosts 32 64 64 64 64
Max. HA Hosts 32 64 64 64 64
Form Factor 2U 2U 2U 2U 2U
Management Software MD Storage Manager MD Storage Manager MD Storage Manager MD Storage Manager MD Storage Manager
Optional Features Snapshot, Virtual Disk Copy, Self-Encrypting Drives, High Performance Tier Snapshot, Virtual Disk Copy, Self-Encrypting Drives, High Performance Tier Snapshot, Virtual Disk Copy, Self-Encrypting Drives, High Performance Tier Remote Replication, Snapshot, Virtual Disk Copy, Self-Encrypting Drives, High Performance Tier Remote Replication, Snapshot, Virtual Disk Copy, Self-Encrypting Drives, High Performance Tier
Server Support Industry-standard servers Industry-standard servers Industry-standard servers Industry-standard servers Industry-standard servers
OS Support Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer Microsoft Windows, Linux, VMware, Microsoft Hyper-V Citrix XenServer
