Dell PowerVault NX200 Tower Network Attached Storage
Simple, small-business file storage built on enterprise hardware

Dell PowerVault NX200 Tower Network Attached Storage (NAS)

Dell Products
Dell Network Attached Storage
Dell PowerVault NX200 Tower Network Attached Storage
Call for Pricing!
844-356-5140

Overview:

Dell PowerVault™ NX200The Dell PowerVault™ NX200 is an entry level, tower form factor NAS (Network Attached Storage) appliance that will provide simple file sharing capabilities for small offices and ROBOs (Remote Office Branch Office) to help them stay efficient and productive. With its RAID 5 configuration the NX200 ensures that business critical data is kept secure.

If your small business needs to consolidate file storage with enterprise-class security and data recovery, the Dell PowerVault™ NX200 offers a simple tower solution that you can set up and manage without dedicated IT support.

  • Purpose-built NAS — Network-attached storage (NAS) backed by an enterprise company that supports the storage consolidation requirements of small businesses.
  • Preconfigured system — Choose your capacity online and your system is ready to ship.
  • Automated installation wizard — Set up and start running quickly.
  • High-performance CPU and RAM — Store, find, work and save large files fast.

The performance and protection your business deserves

When it comes to networked file storage, your small business needs a true business solution — not a repurposed home-network product. With the PowerVault™ NX200, you get the reliability, security and consolidation benefits of an enterprise-class file-storage system — minus the enterprise complexity.

  • Share files fast with high-speed Intel® processor, 2 GB of system memory and dual Gigabit network ports.
  • Experience high reliability, thanks to enterprise-grade hard drives that support high mean time between failure (MTBF).
  • Quickly recover data after an unexpected event or crash using optional Linear Tape-open (LTO) tape or RD1000 backup systems.
  • Enjoy the reliability and availability benefits of a specialized RAID controller and high-quality system components.
Dell PowerVault™ NX200 with Monitor

Do-it-yourself file consolidation

You have better things to do than stress out about your file storage. The PowerVault NX200 is so simple you can order it, set it up and run it yourself. No headaches and no IT necessary.

  • The NX200 is preconfigured for easy online ordering. You can have yours on its way to your office in just a few clicks.
  • With the automated installation wizard, you can have your NX200 out of the box and up and running before your first meeting of the day.
  • Proven, familiar software helps you quickly master system configuration and management tasks. Windows® Storage Server 2008 is a premier OS for small-business storage consolidation with unparalleled support. If you can use Windows, you can configure your Windows-powered NX200.

Key Benefits:

Simple data consolidation for the small business

The PowerVault NX200 comes pre-configured with 4 hot-pluggable SATA hard drives in a RAID 5 setup. Capacity options of 1TB, 2TB, 4TB and 8TB ensure that there is an adequate solution for every small business. Start consolidating and transferring data that has been accumulated on laptops and desktops around the office onto a centralized storage unit. Not only is the NX200 a secure place to keep your data, but it is also a single point to backup your data and restore your data in the event of a disaster.

Use the CIFS/SMB file sharing capabilities to consolidate your file-sharing resources and help improve productivity. Users can now easily collaborate because they can share data across Windows and non-Windows clients. Create snapshots using Volume Shadow Copy (VSS) as an added measure of protection.

Enterprise technology for the small business

The PowerVault NX200 is designed to offer the right level of capacity and storage software to keep you efficient. It also can leverage the right amount of enterprise technologies to keep your small business data secure and make your operation reliable.

Hybrid RAID with the S300 RAID controller (combines hardware and software RAID), enterprise-class hard drives with high 24/7 duty cycles are a sure fit for a businessclass NAS that needs to run without interruption. In addition, the NX200 enterprise class SATA hard drives have a higher MTBF (Meantime Between Failure) rating, exceeding consumer grade SATA drives in reliability, paired with a 24/7 duty cycle rating for continuous operation.

Remote system monitoring and management through iDRAC Express lets small business administrators collect system information and perform simple configuration tasks even when the OS is not running. When the NX200 is deployed as a departmental or ROBO (Remote Office Branch Office) solution it can be accessed remotely.

System management through Remote Desktop Protocol (RDP) can provide a familiar Windows interface from any Windows client that supports RDP to manage the NX200.

Setup and manage your information with ease

Windows Storage Server 2008 Basic (WSS2008 Basic) is based on Windows Server 2008, a time-proven enterprise-class operating system that can be found in data centers around the world today. WSS is backed by Microsoft support and maintained through continuous updates, bug-fixes and security patches. Not only is WSS2008 built upon the hugely successful Windows 2008 Server OS, but it is also as easy to use as your average Windows desktop.

Doesn't waste time building file servers from scratch. The PowerVault NX200 arrives with everything you need to easily share information, saving you valuable time. Dell integrates Microsoft's Windows Storage Server 2008 with convenient setup wizards, like the Initial Configuration Task tool, to get your NAS up and running quickly with few steps. It seamlessly integrates into your current Windows environment, allowing you to leverage the same management and protection tools already deployed. In fact, Windows Storage Server 2008 does not require additional Client Access Licenses (CALs)—an instant benefit.

The NX200 is a great choice for any small business with entry-level file sharing needs. It leverages enterpriseclass Dell server technology and a services and support organization qualified to help businesses from one to many thousands of users. All of this is made easy through the use of tools that WSS2008 Basic provides.

Product Views:

GalleryFeaturesGallery Features

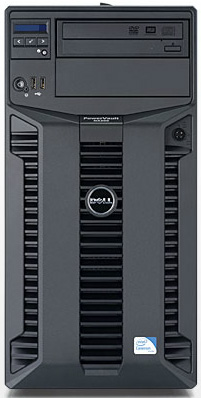

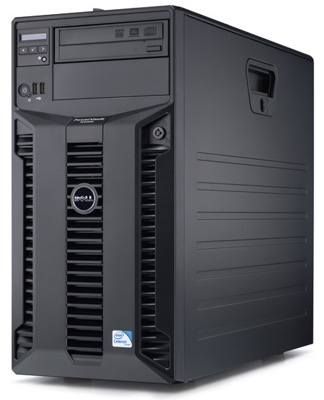

Front View
Front View

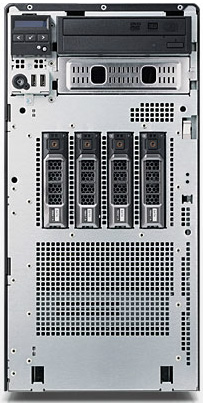

Front Open View
Front Open View

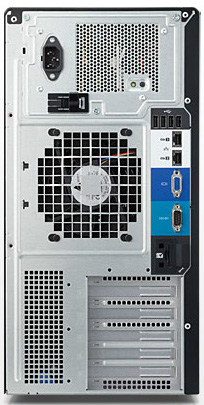

Rear View
Rear View

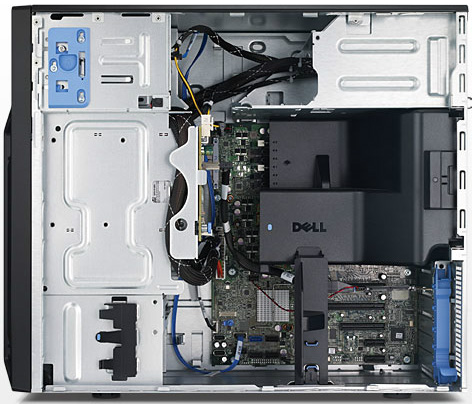

Internal View
Internal View

Color-coded monitor, keyboard, mouse and network ports for easy setup and an oversized fan for reduced noise while operating. Snap-off front bezel provides easy access to the hot-swap hard-drive bays in the front of the system.
Designed with the small business in mind

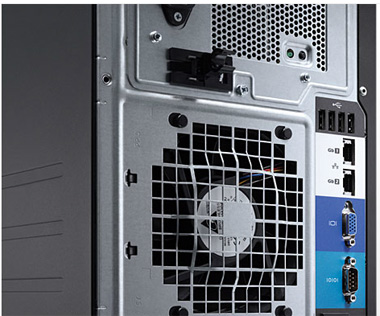

Color-coded monitor, keyboard, mouse and network ports for easy setup and an oversized fan for reduced noise while operating.

Designed for easy maintenance

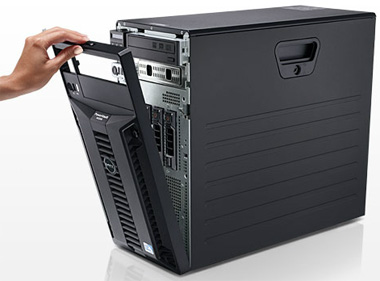

Snap-off front bezel provides easy access to the hot-swap hard-drive bays in the front of the system.

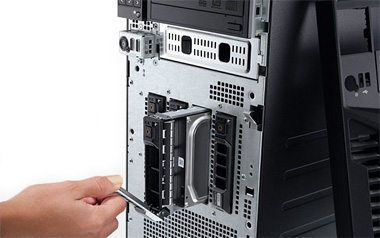

All four enterprise-quality hard drives are mounted in high-grade carriers and are hot-swappable, allowing you to remove a failed drive while the systems is still running. The interactive LCD provides information about the systems name, IP address, temperature, management IP address (if you desire remote management) and service tag or host name.
Designed for reliability
All four enterprise-quality hard drives are mounted in high-grade carriers and are hot-swappable, allowing you to remove a failed drive while the systems is still running.

Design for easy operation

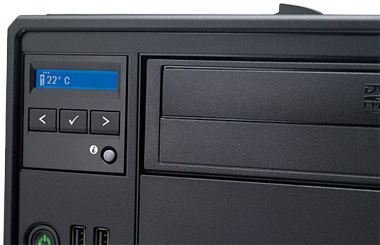

The interactive LCD provides information about the systems name, IP address, temperature, management IP address (if you desire remote management) and service tag or host name.

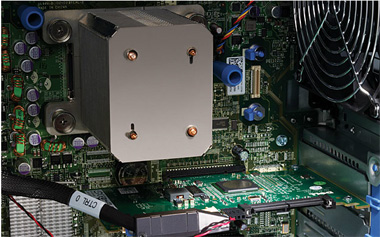

Intel processor, 2GB of memory and hardware RAID give you adequate performace to quickly access and share your files. The NX200 can be initially set up, with a monitor and keyboard, without connecting to a network, and ongoing management can be done using a remote desktop connection.
Design for performance
Intel processor, 2GB of memory and hardware RAID give you adequate performace to quickly access and share your files.
Designed for easy setup
The NX200 can be initially set up, with a monitor and keyboard, without connecting to a network, and ongoing management can be done using a remote desktop connection.

Technical Specifications:

PowerVault NX200
Operating System
Operating System Windows Storage Server 2008 Basic Edition 64-bit
File Access Protocols
File Access Protocols CIFS, FTP
Processor
Number of Processors 1
Processors Supported One Dual-Core Intel Celeron Processor G1101 (2M Cache, 2.26 GHz)
Storage
Internal Storage Capacity Options 1TB, 2TB, 4TB or 8TB
Maximum Internal Storage 8TB
Drives Supported  SATA (7.2K): 250GB, 500GB, 1TB, 2TB
Hot-Swap HD options Four 3.5" SATA drives
RAID
Hardware RAID Levels (custom-configurable options) R5/R5 (OS/DATA)
Hardware RAID Levels (factory-installable options) 0, 1, 5, 10, 6
RAID Controller PERC S300
External None
External HBAs (non-RAID) None
Storage
Type of Data Supported File
Memory 2GB, 2x1GB, 1066 MHz, 2R UDIMM
Internal Data Drives Four 3.5" data drives
Max Internal Capacity 8TB raw
External Scalability RD1000
Management
Management BMC, IPMI2.0 compliant
Dell OpenManage™ featuring Dell Management Console
Unified Server Configurator
LifeCycle Controller enabled via optional: iDRAC6 Express
Remote Management Optional iDRAC Express or Native Java RDP plug-in
Data Protection Features
Data Protection Features Snapshots (VSS)
Cluster Support No
Chassis
Form Factor Tower
Dimensions 17.3 H x 8.6 W x 20.5 D (in)
440 H x 218 W x 521 D (mm)
Slots 2 PCIe x8 + 1 PCIe x16 + 2 PCIe x1
Availability Hot-plug hard drives
Rack Support None
Regulatory
Regulatory and Environmental Compliance Regulatory Model: E09S
Regulatory Type: E09S001
Power supply
AC Power/Max Current Single cabled power supply (375W)

Services:

Dell ProSupport

Designed to address the technology challenges you face today.
Dell ProSupport starts with the Dell ProSupport for IT service model designed for IT professionals like you. Dell ProSupport for IT provides:

  • 7x24 Direct access to Dell Expert Centers
  • Fast-track dispatch for Dell-certified technicians
  • Escalation management through Dell’s Global Command Centers

Next, Dell ProSupport Options align to the way you use technology – rapidly responding to your needs, protecting your investment, your productivity and your sensitive data, and providing enhanced proactive support services to help reduce the risk and complexity of managing your infrastructure.

Speed of Response Protection Premium Proactive
Mission Critical — Perfect for server and storage environments where avoiding unplanned downtime and reducing recovery time through priority response are a must. The package includes priority 4-hour on-site2 service or optional 2-hour response with 6-hour hardware repair, Dell's proven Critical Situation process and emergency dispatch. Data Management and Protection
  • Keep Your Hard Drive helps you retain control of sensitive data
  • Hard Drive Data Recovery provides unlimited attempts to recover data from a failed hard drive
  • Certified Data Destruction wipes your hard drive clean and destroys data
Enterprise-Wide Contract — Provides enhanced proactive capabilities through:
  • Designated Service Delivery Manager
  • Performance benchmarking and custom reporting
  • Planning and assessments

Proactive Maintenance — Maximizes the availability and stability of your infrastructure proactively. The package includes a detailed system assessment and implementation of driver or firmware updates and upgrades for your server or storage systems.

Remote Advisory Options — Provides telephone and Internet access to technical expertise for specialized applications and solutions such as Microsoft Exchange, Virtualization, and more.

Dell ProConsult

Storage Consulting from Dell offers a comprehensive suite of assessment, design and implementation services to help customers get the most from their DELL/EMC CX series product, covering data management, application performance, data protection and cost of ownership. Dell Consultants can provide practical action-oriented plans, to deliver specific, predictable and measured outcomes through high-impact, short duration projects.

  • Dell/EMC SAN Solution Design (standard and custom). This is the provision of a Fiber Channel/iSCSI SAN solution design, incorporating array, Storage Area Network and integration of key applications. Key deliverables include a design document and an implementation guide mapping customer requirements to the most appropriate architecture and technical solution.
  • Dell/EMC Local Data Protection Design (Add on to SAN Solution Design). This is the provision of design services for data protection within the same SAN utilizing EMC software snapshot capability.
  • Dell/EMC Remote Data Protection Design (Add on to SAN Solution Design) This is the provision of design for data protection across one or more SAN, utilizing EMC software replication capabilities.
  • Dell/EMC Backup Integration Design (Add on to SAN Solution Design). This is the provision of design to integrate backup software such as Symantec® , Commvault® and Legato® with EMC software snapshot or replicas capability.
Customization and Set-Up
EDT Installation
Enhanced installation and configuration with Dell professional project management and documentation. A project manager will be acting as the single-point-of-contact for the entire installation project from pre-site audit to co-ordination of the installation and delivery of post-project documentation.
Training
Comprehensive Training
Get the skills you need to keep pace in today's competitive IT environment with comprehensive training and certification courses. Dell offers a vast array of instructor-led classes and online training courses in a range of topics from server maintenance to in-depth technical overview of specific systems.

Documentation:

Dell PowerVault NX200 Datasheet (.PDF)
