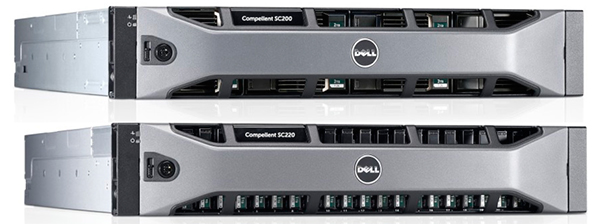

Dell Compellent SC200 and SC220 Enclosures
Mix drive speeds and capacities within each enclosure

Dell Compellent SC200 and SC220 Enclosures

Dell Products
Dell Compellent Expansion Enclosures
Dell Compellent SC200 Enclosures
Call for Pricing!
844-356-5140
Dell Compellent SC220 Enclosures
Call for Pricing!
844-356-5140

Overview:

Dell Compellent expansion

Effective, reliable Dell Compellent expansion

Seamlessly scale your Dell Compellent Storage Center capacity with the latest generation SC200 and SC220 expansion enclosures. Based on Dell hardware, they have the quality, reliability and efficiency you expect from Dell storage enclosures and drives. For additional space savings in high capacity environments, we now offer the SC280 dense enclosure.

  • Choose 3.5” (SC200) and 2.5” (SC220) HDD options in a 2U chassis with SSD support.
  • Select a high-performance, flash-optimized solution with the SC220 and up to 24 write-intensive single-level cell (SLC) SSDs or a combination of write-intensive SLC SSDs, read-intensive, multi-level cell (MLC) SSDs and rotating disk.
  • Mix drive speeds and capacities within each enclosure.
  • Support up to 960 SAS back-end drives per array.
  • High-speed 6Gbps SAS interface
  • Help lower power requirements with 80 plus® Silver certified redundant, hot-swappable 700W power supplies.
  • Protect your data during cooling-system failures with the Fresh Air technology1 within the SC200 and SC220 enclosures.
  • Help reduce operating expenses with a chiller-less data center environment.
  • Compatible with Dell Compellent SC8000 and Series 40 controllers and require Storage Center 6.2 or greater.

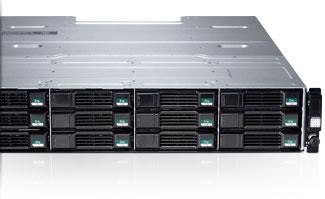

SC200 enclosure

SC200 enclosure

A 2U, 6Gb SAS expansion enclosure supporting up to 12x 3.5" drives for flexible capacity that can mix high speed with high capacity drives.

  • Supports 7,200 rpm and 15,000 rpm HDDs plus 200GB2 and 400GB2 SSDs.
  • Provides up to 48TB2 maximum capacity per expansion enclosure.
  • Features dual 6Gb SAS enclosure management modules.

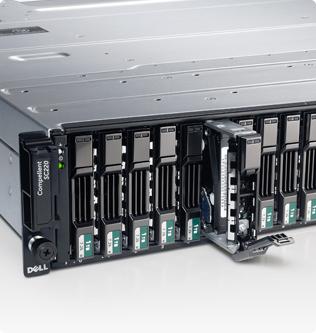

SC220 enclosure

A 2U, 6Gb SAS enclosure that supports up to 24x 2.5" HDDs or an all-flash and hybrid-flash options to enable a broad mix of storage options in one chassis.

Supports 7,200, 10,000 rpm and 15,000 rpm HDDs plus 200GB2, 400GB2, and 1.6TB2 SSDs.

  • Flash-optimized SC220 with Storage Center 6.4 firmware can tier across write-intensive SLC SSDs and lower-cost, high-capacity, read-intensive, MLC SSDs in a single solution.
  • Provides up to 38.4TB2 maximum capacity per expansion enclosure.
  • Features dual 6Gb SAS enclosure management modules.

Global services and support

SC220 enclosure

Dell Services can help reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team delivers distinctive capabilities, including Copilot support and optimization as well as full data migration solutions to facilitate consolidation from multiple file systems. Dell takes a holistic view of your needs and designs solutions for your environment and business objectives, and uses established delivery methods, local talent and in-depth domain knowledge to help lower your total cost of ownership.

Benefits:


Scalable and efficient expansion for block and file storage

Dell Compellent offers customers an agile, high-performance storage platform that delivers ongoing economic value. With its open, scalable hardware platform, Compellent allows you to intermix the latest industry-standard drive technologies in the same array with the energy-efficient SC200 and SC220 expansion enclosures. You can also introduce new and emerging technologies over time and on the fly to support your SAN and NAS environments and scale up and out on demand without disruption or downtime.

Scale on a single, modular hardware platform

Easily add capacity to your Dell Compellent Storage Center™ SAN and NAS environments with flexible and efficient SC200 and SC220 enclosures that offer performance and capacity options to meet your data center requirements. With Dell Compellent drives and enclosures, your organization can start with any amount of storage capacity and expand over time — from terabytes to nearly 2PB — only replacing components for new technology upgrades. You can easily combine drive and enclosure technologies to build a storage solution that optimizes capacity for maximum efficiency with a minimal footprint. Incorporating new technologies is as simple as plugging in new components. Plus, with the 2U 6Gb SAS SC200 and SC220 expansion enclosures, you can seamlessly scale your Dell Compellent Storage Center capacity, and build a complete end-to-end Dell hardware solution that can support up to 960 back-end SAS drives per system.

Select the right enclosures for your environment

The SC200 supports a combination of up to 12 hot-pluggable 3.5" SAS HDDs and SSDs, and can yield a total of 48TB raw capacity per enclosure with 4TB drives. The SC220 supports up to 24 hot-pluggable 2.5" drives with 38.4TB raw maximum capacity per expansion enclosure with the 1.6TB SSD. The SC220 also supports Flash-optimized solutions using both hard disk drives (HDDs) and solid-state drives (SSDs). Each drive bay within the SC200 and SC220 can be individually configured for speed and capacity.

Help lower power requirements with redundant, hot-swappable 80 PLUS® Silver-certified power supplies, and better protect your data with the cost-efficient Fresh Air technology supported by the SC200 and SC220 enclosures. For high-capacity requirements, Compellent also offers the SC280 dense enclosure.

Flexible drive options for storage expansion

With Compellent, you can intermix SAS and Fibre Channel HDDs, and SSDs including multi-level cell (MLC) and single-level cell (SLC) SSDs in the same array. Simply choose the drive types, capacities, form factors, transfer rates and rotational speeds that best meet your business and application needs. You can always add more capacity on the fly to accommodate changing business requirements. The system adjusts automatically, restriping data across all drives in the array.

With Compellent, you can intermix SAS and Fibre Channel HDDs, and SSDs including multi-level cell (MLC) and single-level cell (SLC) SSDs in the same array. Simply choose the drive types, capacities, form factors, transfer rates and rotational speeds that best meet your business and application needs. You can always add more capacity on the fly to accommodate changing business requirements. The system adjusts automatically, restriping data across all drives in the array.

Technical Specifications:

Dell Compellent SC200 and SC220 Enclosures
Technical Highlights
Expansion Enclosure Interface Speed:
6 Gb/s SAS
Drive Support:
SAS
Intermixed Drive Capacities Yes
Max Number of Drives per Enclosure SC200: 12
SC220: 24
Max Number of Drives per Array 960
Redundant and Hot-swappable Power Supplies Yes
Chassis
Scalability SC200: Each 3.5" SAS enclosure holds up to 12 SAS drives.
SC220: Each 2.5" SAS enclosure holds up to 24 SAS drives.
Capacity SC200: 48T per 2U
SC220: 38.4TB per 2U
Height 8.7cm (3.43 inches)
Width 48.2cm (18.98 inches)
Depth SC200: 59.4cm (23.39 inches)
SC220: 54.1cm (21.30 inches)
Weight SC200: 28.39 kg (62.6 lb) (maximum configuration)
8.84 kg (19.5 lb) (empty)
SC220: 23.31 kg (51 lb) (maximum configuration)
8.61 kg (19 lb) (empty)
Wattage 700W (Power Supply Rating), 450W maximum draw
Heat Dissipation SC200: 2,389 BTU/hr (at 700W)
1,536 BTU/hr Max
SC220: 2,389 BTU/hr (at 700W)
1,621 BTU/hr Max
Voltage 100-240 VAC, auto sensing
Frequency 50/60 Hz
Amperage 8.6 A at 100 V, 4.3 A at 240 V
Drives SC200:
3.5” SSD Drives
200GB, SAS, 6Gb, SSD
400GB, SAS, 6Gb, SSD
3.5” SAS Drives
450GB, SAS, 6Gb, 15K HDD
600GB, SAS, 6Gb, 15K HDD
2TB, SAS, 6Gb, 7.2K HDD
3TB, SAS, 6Gb, 7.2K HDD
4TB, SAS, 6Gb, 7.2K HDD
3.5” Fibre Channel
300GB Fibre
Channel15K
600GB Fibre Channel 15K

SC220:
2.5” SSD Drives
200GB, SAS, 6Gb, SSD
400GB, SAS, 6Gb, SSD (write intensive SLC for Flash-optimized solutions)
1.6TB SSD (read intensive MLC for Flash-optimized solutions)
2.5” SAS Drives
146GB, SAS, 6Gb, 15K HDD
300GB, SAS, 6Gb, 15K HDD
600GB, SAS, 6Gb, 10K HDD
900GB, SAS, 6Gb, 10K HDD
1TB, SAS, 6Gb, 7.2K HDD
Rack ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting
Maximum Power Draw 74 amps
