Dell Compellent Storage Enclosures
Balance cost and performance with the right technologies
Twelve 3.5" Drive SAS Enclosure
Twenty-Four 2.5" Drive SAS Enclosures
Sorry, this product is no longer available, Please contact usfor a replacement.
Dell Compellent enterprise-class storage enclosures feature the latest industry-standard technology, including 6 Gb SAS interconnects, so organizations can scale up and out with ease. Administrators can mix SSD, Fibre Channel and SAS drives in the same system, as well as SAS drives with the same form factor (but different speeds and capacities) in the same storage enclosure. Using identical rackspace, 24-bay 2.5" SAS enclosures accommodate more than twice as many drives as 16-bay 3.5" Fibre Channel enclosures. Any combination of Fibre Channel and/or SAS enclosures can be housed in an array to balance cost and performance. And users can change configuration on demand – adding, replacing or updating enclosures – as new technologies emerge and business needs shift. Plus, migrating data to new enclosures can be performed without disruption or downtime by using Live Volume software.
Dell Compellent disk enclosures feature the latest industry-standard technology, including 6Gb SAS interconnects, so organizations can scale up and out with ease. Administrators can mix SSD, Fibre Channel, SAS and NLSAS drives in the same system as well as different speeds and capacities in the same enclosure.
Any combination of enclosures can be housed in an array to balance cost and performance. Users can change configuration on demand—adding, replacing or updating enclosures—as new technologies emerge and business needs change. Migrating data to new enclosures can be performed without disruption.
Scale on a single, modular hardware platform
With Dell Compellent drives and enclosures, organizations can start with any amount of storage capacity and expand over time, only having to replace components if upgrading to new technologies. You can easily combine drive and enclosure technologies to build a storage solution that optimizes capacity for maximum efficiency with a minimal footprint. Incorporating new technologies is as simple as plugging in new components. And redundant, hot-swappable power supplies and drives, support for multiple RAID levels, and automatic drive failover and rebuild help to ensure data protection.
Store your data on 3.5" or 2.5" drives
Dell Compellent drives feature the latest industry-standard innovations. Organizations can intermix SSD, FC and SAS drives in the same array. Administrators simply choose the drive types, capacities, form factors, transfer rates and rotational speeds that make sense for their business and application needs.
Dell Compellent 3.5" drives support 4Gb FC or 6Gb SAS back-end connectivity. When utilizing 3.5" FC drives, you can select between 15K 300GB, 15K 600GB or 10K 450GB capacities. With 3.5" SAS drives, the options are 15K 450GB, 15K 600GB, 7.2K 1TB or 7.2K 2TB drives. Also available are 2.5" 6Gb SAS drives, which deliver improved performance yet consume about half the power of conventional 3Gb SAS drives. When utilizing 2.5" SAS drives, you can select between 15K 146GB, 10K 450GB, 10K 600GB or 7.2K 1TB.
No matter the combination of drives, your storage environment remains optimized with true storage virtualization. All drives are abstracted and aggregated across the array, creating a high-performance pool of shared storage. With multiple I/O requests processed in parallel, I/O bottlenecks are minimized. Adding automated tiered storage software, called Data Progression™, further increases efficiency and performance by dynamically moving inactive data to lower-cost, high-capacity drives.
You can always add more capacity on the fly to accommodate changing business needs. The system adjusts automatically, restriping data across all drives in the array. Also, migrating data to new drives can be performed without disruption using Dell Compellent Live Volume™ software.
Select the right enclosures for your environment
With Dell Compellent enclosures, administrators always know their systems can benefit from the latest industry-standard innovations, such as 6Gb SAS interconnects. You have the flexibility to mix and match a variety of enclosures—FC or SAS—in the same Dell Compellent Storage Center system. In fact, you can combine SAS drives with the same form factor and transfer rate but different capacities and rotational speeds in the same enclosure. The result is an optimum balance of performance and cost.

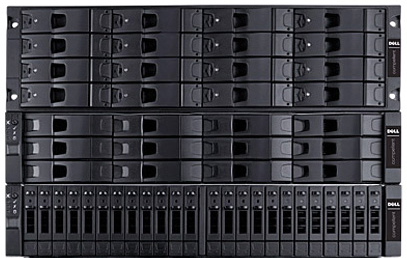

|16 x 3.5" Drives FC Enclosure Front View|

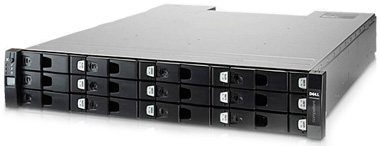

|12 x 3.5" Drives SAS Enclosure Front View|

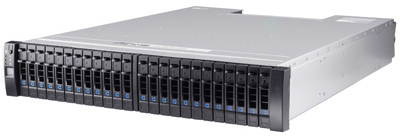

|24 x 2.5" Drives SAS Enclosure Front View|

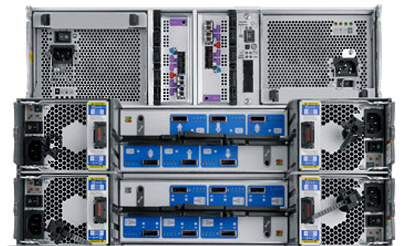

|16 x 3.5" Drives FC Enclosure Rear View|
|12 x 3.5" Drives SAS Enclosure Rear View|
|24 x 2.5" Drives SAS Enclosure Rear View|
|Enclosures||FC Enclosure (3.5" disks)||SAS Enclosure (3.5" disks)||SAS Enclosure (2.5" disks)|
|Max number of back-end ports||22||20||20|
|Number of bays||16||12||24|
|Max number of back-end loops/chains||11||10||10|
|Enclosures per loop/chain||7||8||4|
|Drive support||FC (3.5")||SAS (3.5")||SAS (2.5")
|Intermixed drive capacities||Yes||Yes||Yes|
|Max number of drives per system†||1,232||960||960|
|Drive capacities||15,000 RPM: 300GB, 450GB, 600GB
10,000 RPM: 450GB
|15,000 RPM: 450GB, 600GB
7,200 RPM: 1TB, 2TB, 3TB
15,000 RPM: 146GB
10,000 RPM: 450GB, 600GB, 900GB
7,200 RPM: 1TB
|Power supplies redundant and hot-swappable||Yes||Yes||Yes|
|Drives redundant and hot-swappable||Yes||Yes||Yes|
|Automatic drive failover||Yes||Yes||Yes|
|Automatic drive rebuild||Yes||Yes||Yes|
|Maximum number of hot spares||Configurable||Configurable||Configurable|
|RAID Levels||Support for RAID levels 0, 5, 6 and 10
Any combination of RAID levels can exist on a single Storage Center
Multiple RAID levels can exist on the same storage tier within an array
Storage is virtualized and pooled across array without RAID group limitations
|Height||5.12" (130 mm),
3 EIA Units
|3.46" (87.9 mm),
2 EIA Units
|3.46" (87.9 mm),
2 EIA Units
|Width||19.0" (482.6 mm)||19.0" (482.6 mm)||19.0" (482.6 mm)|
|Depth||19.7" (500 mm)||24.8" (630 mm)||24.8" (630 mm)|
|Weight||78 lbs. (35 kg)||57 lbs. (25.8 kg)||53 lbs. (24 kg)|
|Power consumption||450 watts||410 watts||425 watts|
|Power supplies||Dual (redundant)||Dual (redundant)||Dual (redundant)|
|Heat dissipation (BTU/hr)||1,540||1,725||1,785|
|Temperature||41°F – 104°F
(5°C – 40°C)
|41°F – 104°F
(5°C – 40°C)
|41°F – 104°F
(5°C – 40°C)
|Humidity (non-condensing)||20% – 80%||8% – 80%||8% – 80%|
* The maximum usable capacity supported by a system varies based on configuration. ** SATA drives and enclosures are supported on existing Storage Center SANs, but are not available for new customers.
