Dell EMC PowerEdge MX750c Compute Sled
High-performance modular compute sled with exceptional scale

Dell Storage Products
Dell PowerEdge Modular Infrastructure
Dell EMC PowerEdge MX750c Compute Sled
#PE-MX750C
Get a Quote!

More pricing below, click here!

Overview:

The Dell EMC PowerEdge MX750c offers compelling compute-density, improved performance and value for:

  • General purpose IT, virtualization, containerization
  • Software-defined storage and networking
  • Database analytics

The Dell EMC PowerEdge MX750c is the latest addition to the PowerEdge MX kinetic infrastructure ecosystem, is a fully featured, high-performance, modular compute sled for exceptional scalability. High-performance, modular dense compute for scalability. Designed for general IT, virtualization, containerization, SDS/SDN, and database analytics.

Innovate at scale enabling sophisticated and emerging workloads for a transformational experience

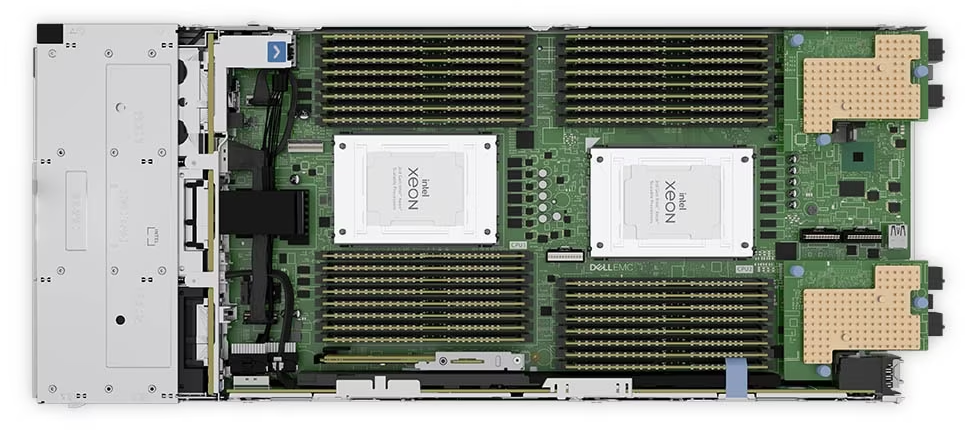

A fully configurable single-width compute sled powered by up to two-40 core 3rd Generation Intel Xeon Scalable processors. Each PowerEdge MX750c supports 32 DDR4 DIMM slots and up to six 2.5-inch SAS/SATA (HDD/SDD) or Express Flash NVMe PCIe SSDs drives. A maximum of eight MX750c servers can be installed in the PowerEdge MX7000 chassis.

  • Flexible memory configurations from capacities of up to 4 TB
  • Supports up to 16 slots for Second Generation Intel Optane DC persistent memory DCPMM
  • Choice of optional M.2 Boot Optimized Storage Solution (BOSS) or Internal Dual microSD Module (IDSDM), to streamline operating system and data storage
  • Option of Express Flash NVMe PCIe SSD for high performing direct attached storage requirements

This makes the PowerEdge MX750 an ideal server for organizations:

  • looking for leading-edge performance for virtualization, containers, software-defined storage and software-defined networking and database analytics
  • seeking to commit to Dell EMC’s vision that leads toward Composable Disaggregated Infrastructure (CDI)
  • invested in PowerEdge MX who desire leading-edge compute, memory and I/O capabilities that include an end-to-end uniquely managed experience

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. OpenManage Enterprise – Modular is specifically designed to enable customers that enjoy the benefits of a multi-chassis management approach found uniquely in the MX solution. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • ntegrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge MX750c server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
  • Maintain server firmware safety with digitally signed firmware packages
  • Prevent unauthorized configuration or firmware change with system lockdown
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Features:

Your innovation engine

The Dell EMC PowerEdge MX750c, powered by up to two 3rd Generation Intel Xeon Scalable processors, is a full-featured, high-performance modular server for exceptional scalability.


Modular compute sled ideal for emerging workloads

The Dell EMC PowerEdge MX750c is designed for the PowerEdge MX7000 kinetic infrastructure ecosystem, and is the latest addition to the PowerEdge MX modular infrastructure portfolio. Up to eight of these dual socket compute sleds can fit within an existing PowerEdge MX7000 module chassis.

  • Maximizes density and performance in each sled by supporting up to two 3rd Generation Intel Xeon Scalable processors offering up to 40-cores each.
  • Supports eight memory channels per CPU with up to 32 DDR4 DIMMs at 3200 MT/s in each sled.
  • Address substantial throughput improvements with PCIe Gen 4 and up to 6 NVMe drives per sled.

Systems Management and Security Solutions


OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.


Technical Specifications:


Dell EMC PowerEdge MX750c Specifications
Processors

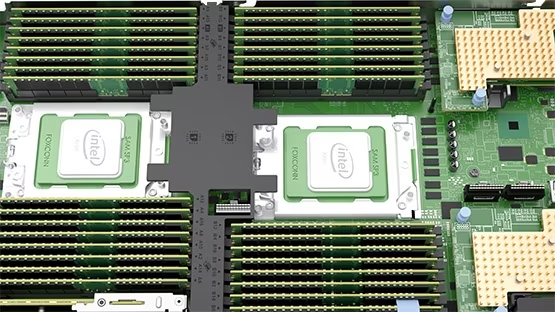

  • Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
  • Intel C620 series chipset with optional Intel QuickAssist Technology
Memory 32 DDR4 DIMM slots, supports RDIMM max 2 TB or LRDIMM max 4 TB, speeds up to 3200 MT/s
Persistent Memory Supports up to 16 Intel Persistent Memory 200 series (BPS) slots with a maximum total capacity of 7.68 TB per sled
Availability Supports registered ECC DDR4 DIMMs only
Storage Controllers
  • Internal controllers: PERC H755 MX, PERC H745P MX, HBA350i MX, S150
  • Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB or Internal Dual SD Module (IDSDM) or USB
  • External PERC (RAID): PERC H745P MX
  • External HBAs (non-RAID): HBA330 MMZ

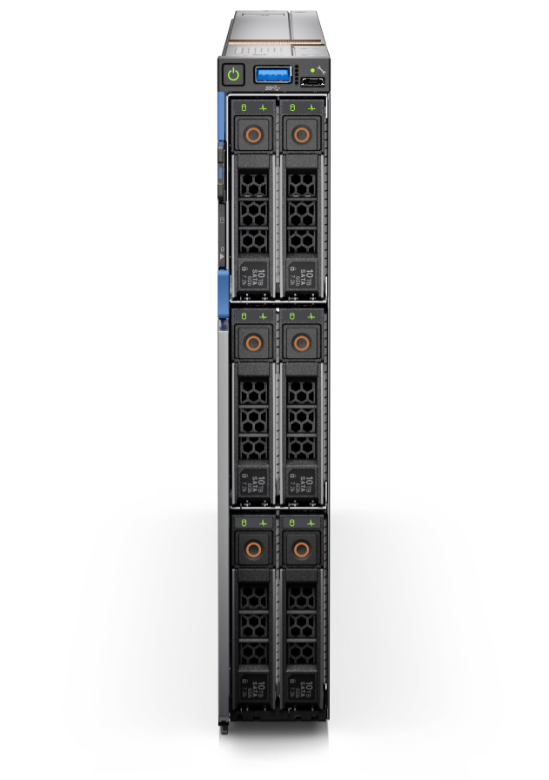

Drive bays Front bays:
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) 7.68 TB per drive
  • Up to 6 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) 7.68 TB per drive
Power supplies MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
Fans MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
Dimension
  • Height: 42.15 mm (1.65 inches)
  • Width: 250.2 mm (9.85 inches)
  • Depth: 594.99 mm (23.42 inches)
Form Factor Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Embedded management

MX7000 chassis:

  • OpenManage Enterprise Modular Edition (OME-Modular);
  • Up to 2 redundant MX9002m management modules
  • Unified control: single management point for server, storage, and networking
  • Intelligent automation: Operational template methodology and comprehensive RESTful API
  • Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module

On compute sled:

  • iDRAC9
  • iDRAC Direct
  • iDRAC Service Module
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
  • OpenManage Enterprise Modular Edition
Integrations and Connections Integrations:
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager

Connections:

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager i
  • Nagios Core
  • Nagios XI
Integrated Security
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
  • Digitally Signed Firmware
  • Chassis Intrusion Alert
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
Networking Options (NDC)
  • MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
  • Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
Ports Front ports
  • 1 x iDRAC Direct port (Micro-AB USB)
  • 1 x USB 3.0

Internal port

  • 1 x USB 3.0
PCIe
  • One x16 PCIe Gen4 slot for Mezz A – connected to processor 1
  • One x16 PCIe Gen4 slot for Mezz B – connected to processor 2
  • One x16 PCIe Gen4 slot for Mini Mezz card – connected to processor 2
  • One x16 PCIe Gen4 slot for PERC – connected to processor 1
  • Two x8 PCIe Gen4 connectors for NVMe drive – connected to processor 1
  • One x8 PCIe Gen4 connectors for NVMe drive – connected to processor 2
  • Two x4 PCIe Gen3 slot for BOSS M.2 HW RAID card – connected to Platform Controller Hub (PCH)
Operating Systems and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi/vSAN

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.


Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.


Support Services


Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.


Deployment Services


Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.


Training & Certification

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.


Documentation:

Dell EMC PowerEdge MX750c Datasheet (.PDF)
