Dell PowerEdge XR7620
Short-depth accelerated data center-level compute, purpose-built for the edge
Overview
The Dell PowerEdge XR7620 is a short-depth 2U, 2-socket server with datacenter-level compute delivering highperformance, high-capacity and reduced latency. Purpose-built for the edge, the PowerEdge XR7620 is designed for the most demanding workloads including industrial automation, video analytics, point of sale analytics, AI inferencing and edge point device aggregation.
The Dell PowerEdge XR7620 is a high-performance server designed and optimized for edge use cases like
- Industrial automation
- Video analytics
- Point of sale analytics
- AI inferencing
- Edge point device aggregation
Purpose-built for the Edge
- Built rugged to operate in temperatures from -5°C to 55°C; MIL 810H and NEBS Level 3 tested
- Offers easy serviceability with reversible I/O & power
- Short-depth (472 mm) chassis to fit in space constrained environments
- Withstand dusty and harsh environments with an optional lockable smart filtered bezel for extra physical security
Datacenter-level compute
- Two Intel Xeon Scalable Processors with up to 32 cores per processor for ultimate edge performance
- Integration with PCIe Gen5 doubles the data transfer rate from PCIe Gen4 for faster more efficient data transfer
- Includes latest memory DDR5, 50% memory capacity over DDR4, increasing bandwidth
Acceleration where it’s needed
- Up to two double-wide GPU accelerators to support demanding workloads
- E3 NVME storage utilizes a limited-space design with more storage density, making it ideal for data-intensive workloads at the edge
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 locations and backed by our 60K+employees and partners.
Features
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.
Bringing enterprise-class compute to the edge
Powered by 4th generation Intel Xeon SP processors, experience a short-depth 2U, two-socket server purpose-built for acceleration at the Edge.
Built to endure
Designed to bring acceleration to the edge.
- Operates in temperatures ranging from -5°C to 55°C, is MIL and NEBS tested

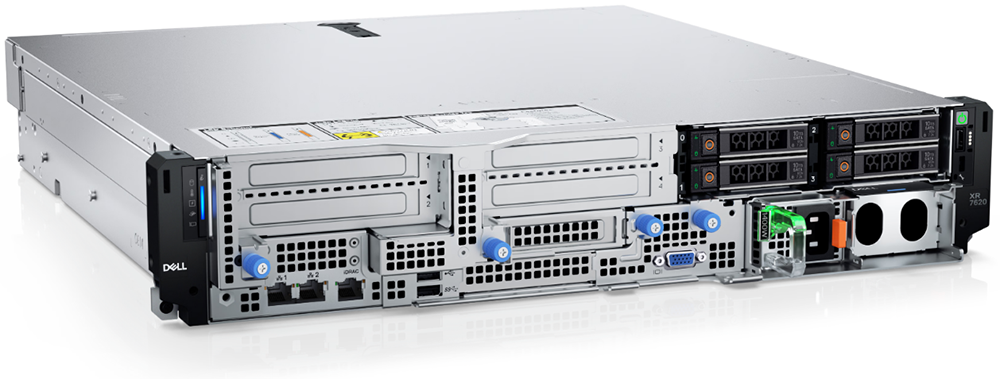

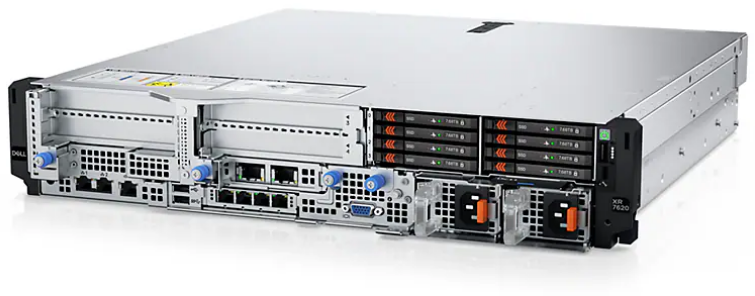

- Easily serviceable with rear/front facing I/O and power options
- Short-depth design allows flexibility in tight edge environments

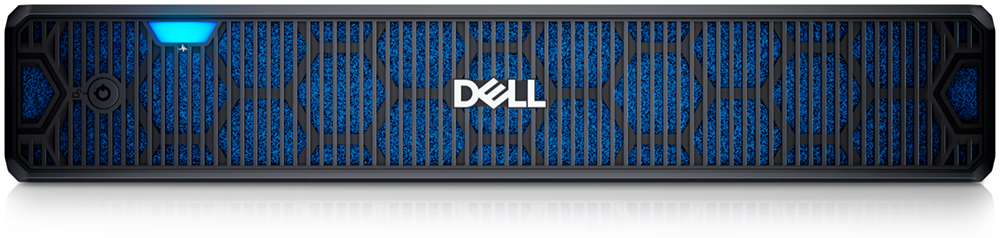

- Built rugged to withstand dusty, harsh environments along with additional security from the optional lockable intelligent bezel
Systems Management and Security Solutions
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Technical Specifications
| Processors | One 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor |
|---|---|
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only |
| Storage controllers |
|
| Drive bays | Front bays: Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives, 61.44 TB max, Up to 8 x E3.S NVMe direct drives, 51.2 TB max |
| Hot Swap Redundant Power Supplies |
|
| Cooling options | Air cooling |
| Fans | 6 Standard cold swap fans |
| Dimension | Rear Accessed configuration
Front Accessed configuration
|
| Form Factor | 2U rack server |
| Embedded management |
|
| Bezel | Optional security bezel with dust filter (dust sensor available only for Front Accessed configuration systems) |
| OpenManage Software |
|
| Mobility | OpenManage Mobile |
| OpenManage Integrations |
|
| Security |
|
| Embedded NIC | 2 x 1 GbE LOM |
| Network options | 1 x OCP card 3.0 (optional) |
| GPU options | Up to 5 x 75 W (Single Width Full Height/Half Length, Low Profile) GPU or up to 2 x 300 W (Double Width Full Height/Full Length) |
| Ports | For Rear Accessed configuration
For Front Accessed configuration
|
| PCIe | 2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4) |
| Operating Systems & Hypervisors |
|
| OEM-ready version availabe | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. |
