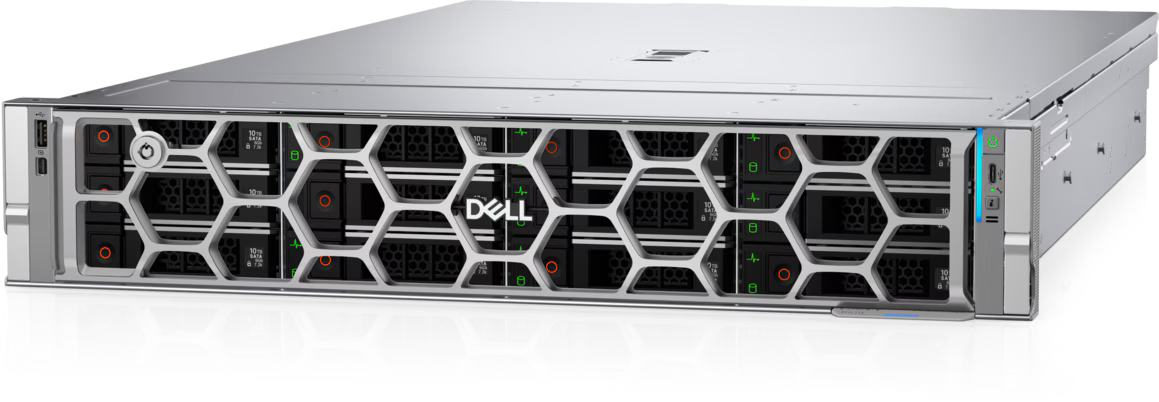

Dell PowerEdge R5715
2U single-socket AMD EPYC rack server built around drive density and sustained throughput
More pricing below, click here!
Overview:
The Dell PowerEdge R5715 is powered by a 5th Generation AMD EPYC 9005 Series processor, 24 DDR5 DIMM slots, NVMe BOSS-N1 and iDRAC10.
Ideal for:
- Backup and recovery targets
- File and object serving
- Video surveillance and retail
- Capacity-tier and archive storage

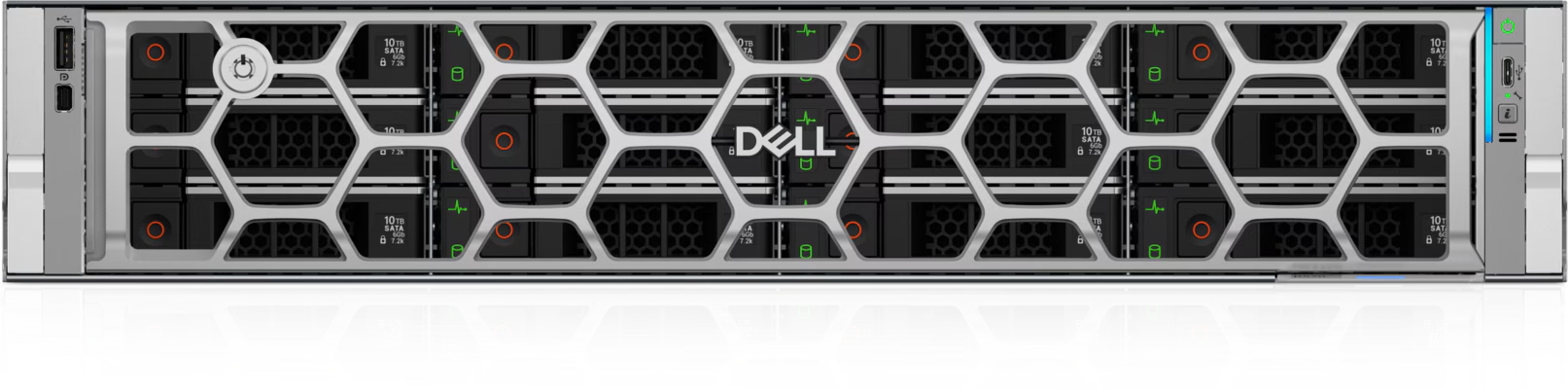

The 2U, one-socket PowerEdge R5715 is built around storage capacity and I/O expandability, offering twelve 3.5-inch drive bays without the cost or licensing overhead of a dual-socket platform.
Storage density where you need it most

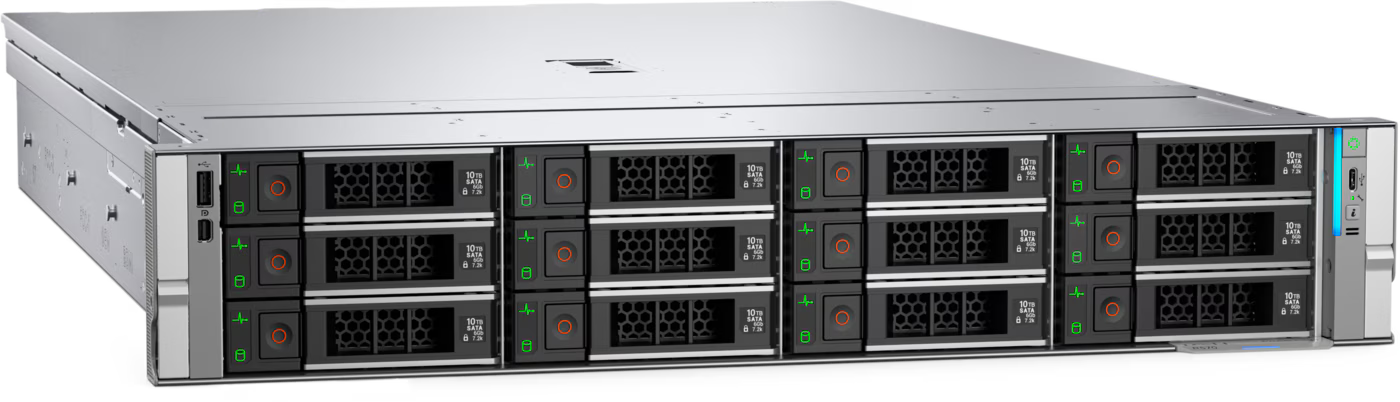

The PowerEdge R5715 is a 2U, single-socket rack server built on the 5th Generation AMD EPYC 9005 Series platform. Where its 1U sibling, the PowerEdge R4715, fits eight 2.5-inch or four 3.5-inch drives, the R5715 takes twelve 3.5-inch SAS/SATA drives — three times the large-form-factor count in twice the rack space. Alternatively you can configure sixteen 2.5-inch bays where a higher spindle count and smaller failure domain matter more.
That makes the R5715 a natural fit for the workloads that consume capacity rather than cores: backup and recovery targets, file serving, capacity tiers behind a primary array, and retail or campus video surveillance where days of retention drive the sizing. A single processor with up to 32 cores is more than sufficient to keep those workloads fed, and it keeps both the acquisition cost and the per-core licensing bill down.
A backup target that does not compromise on I/O
Capacity alone is not enough for a backup target — ingest and restore windows depend just as much on the network and controller path. The R5715 carries four full-height PCIe Gen5 x16 slots, one more than the R4715, plus two OCP NIC 3.0 slots, so 25 GbE networking can be fitted alongside a PERC H965i without contending for the same expansion budget.
Boot is handled by a dedicated BOSS-N1 module, keeping the operating system isolated from the data pool. That separation matters on a capacity platform: the array can be rebuilt, re-tiered or reconfigured without disturbing the boot volume.
Right-sized configuration for targeted workloads
- Front storage configurable as 12 x 3.5-inch SAS/SATA or 16 x 2.5-inch SAS/SATA.
- 24 DDR5 DIMM slots supporting up to 1.5 TB of registered ECC memory at speeds up to 5200 MT/s.
- Four PCIe Gen5 x16 full-height slots plus two OCP NIC 3.0 slots supporting 1 GbE, 10 GbE and 25 GbE.
- PERC H365i or H965i RAID with a dedicated BOSS-N1 boot device.
Efficiency in an air-cooled footprint
The R5715 is an air-cooled platform, avoiding the facilities investment that liquid-cooled servers require. Up to six hot-plug fans sustain airflow across a fully populated drive plane, while Platinum and Titanium power supplies at 800 W and 1100 W, with Fault Tolerant Redundancy, support both efficiency and uptime.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factoryto-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations. For a platform holding backup copies, Secure Erase and Data at Rest Encryption with self-encrypting drives protect data through the full retirement lifecycle.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services designed to meet you wherever you are. Accelerate time to value in achieving high AI use cases with Professional Services for AI, choose from tailored deployment options with the ProDeploy Suite, receive proactive and predictive support with our ProSupport Suite, and so much more with our services available across 170 locations and backed by our 60K+ employees and partners.
