Dell EMC PowerEdge R640
Uncompromising performance and density

Dell Storage Products
Dell PowerEdge Rack Servers

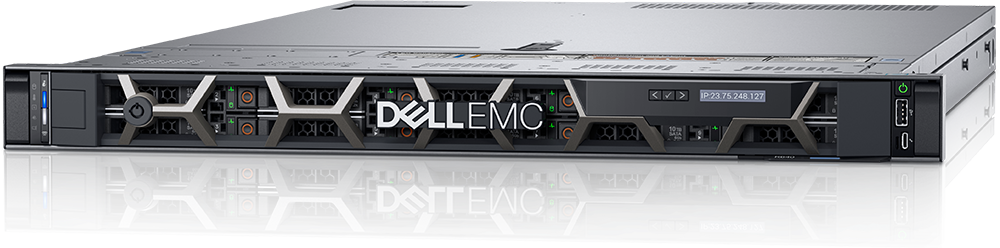

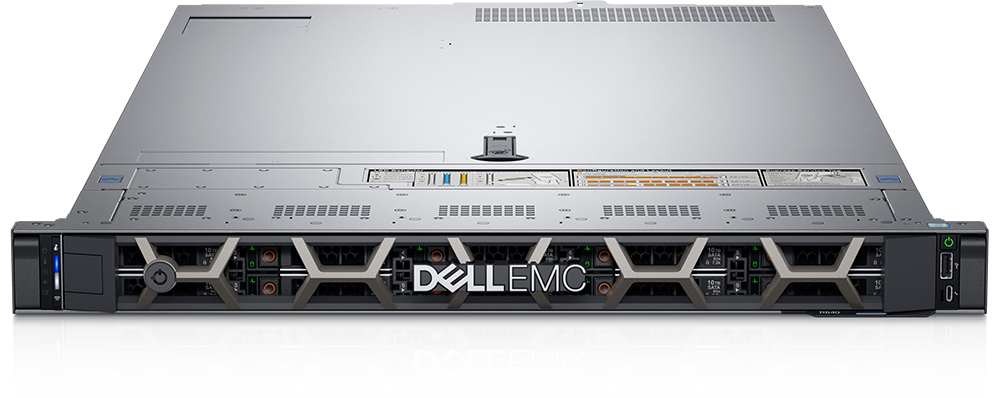

Dell EMC PowerEdge R640 Rack Server
#PE-R640
Get a Quote!

More pricing below, click here!

Overview:

Ideal workloads:

  • Dense software-defined storage
  • Service providers: application tier
  • Dense private cloud
  • Virtualization
  • HPC

The PowerEdge R640 is the ideal dual-socket, 1U platform for dense scale-out data center computing. The R640 combines density, performance and scalability to optimize application performance and data center density.

Maximize application performance and density

The scalable business architecture of the R640 is designed to maximize application performance and provide the flexibility to optimize configurations based on the application and use case. With the R640 you can create an NVMe cache pool and use either 2.5” or 3.5” drives for data storage. Combined with up to 24 DIMM’s, 12 of which can be PMems or NVDIMMs, you have the resources to maximize application performance with the optimum configuration in only a 1U chassis.

  • Simplify deployments and speed deployments with Dell EMC ready nodes for VSAN.
  • Maximize storage performance with up to 10 NVMe drives or 12 2.5” drives.
  • Scale compute resources with 2nd Generation Intel Xeon Scalable processors and tailor performance based on your unique workload requirements.

Automate maintenance with Dell EMC OpenManage

The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R640 is simply managed, freeing up time for high profile projects.

  • Simplify management with the OpenManage Enterprise console, with customized reporting and automatic discovery.
  • Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.

Guard your data center with built in security

Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server life cycle. The R640 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.

  • Rely on a secure supply chain that protects servers from factory to the data center.
  • Maintain data safety with cryptographically signed firmware packages and Secure Boot.
  • Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license).
  • Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.

Features:

Uncompromising performance and density for data center productivity and scale

The PowerEdge R640 is the ideal dual-socket platform for dense scale-out data center computing and storage. Benefit from the flexibility of 2.5” or 3.5” drives, the performance of NVMe and embedded intelligence to ensure optimized application performance in a secure platform. With embedded diagnostics and SupportAssist, the R640 delivers maximum uptime in a worry-free environment.

Ideal workloads:

  • Dense software-defined storage
  • Service providers: application tier
  • Dense private cloud
  • Virtualization
  • HPC

Drive transformation with the Dell PowerEdge portfolio

Data center evolution starts with modern platforms that easily scale and are optimized for application performance. The PowerEdge R640 is built upon a scalable system architecture and provides the choice and flexibility to easily meet performance demands.

  • Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell Ready Nodes.
  • Maximize performance with up to 10 NVMe drives and 24 DIMMs, 12 of which can be DCPMMs or NVDIMMs
  • Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors, and tailor performance based on your unique workload requirements

Automate productivity with intelligent, embedded management

Dell automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.

  • Help maximize uptime and reduce the IT effort to resolve issues by up to 72% with ProSupport Plus and SupportAssist.
  • Leverage existing management consoles with easy integrations for VMware vSphere, Microsoft System Center and Nagios.
  • Improve productivity with agent-free Dell iDRAC9 for automated, efficient management.
  • Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.

Fortify your data center with comprehensive protection

Dell provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.

  • Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
  • Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
  • Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
  • Take control of your firmware consoles with embedded authentication that is designed to allow only properly designed updates to run.

Systems Management and Security Solutions


OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.


Technical Specifications:


Dell EMC PowerEdge R640 Specifications
Processors Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor
Memory
  • 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max
  • Up to 12 NVDIMM, 192 GB Max
  • Up to 12 Intel Optane persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM)
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal Controllers: PERC H330, HBA330, HBA350i (adapter only), H730P, H740P, H750 (adapter only)
  • External Controllers: H840, 12 Gbps SAS HBA, HBA355e (adapter only, non-RAID)
  • Software RAID:S140
  • Internal Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB
  • Internal Dual SD Module
Drive bays

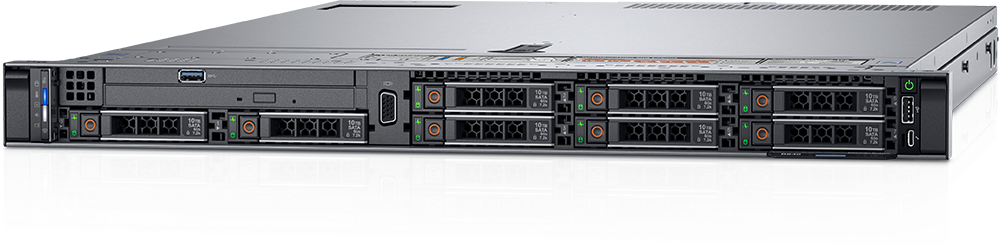

  • Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 8 NVMe SSD max 76.8TB or up to 10 NVMe drives max 64TB, or up to 4 x 3.5” SAS/SATA HDD max 64TB
  • Rear drive bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 15.36TB
  • Optional DVD-ROM, DVD+RW
Power supplies
  • 495W Platinum
  • 750W Platinum
  • 1100W 48VDC
  • 1100W Platinum
  • 1600W Platinum
  • 750W Titanium
  • Hot plug power supplies with full redundancy option
  • Up to 8 hot plugs fans with full redundancy
Dimension
  • Height: 42.8mm (1.69”)
  • Width: 482.0mm (18.98”)
  • Depth: 808.5mm (31.8”)
  • Weight: 21.9kg (48.3 lbs.)
Form Factor 1U rack server
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC REST API with Redfish
  • Quick Sync 2 BLE/wireless module (optional)
Bezel Optional bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Center
  • OpenManage Mobile
Integrations and Connections Integrations:
  • Microsoft System Center
  • VMware vCenter
  • BMC Truesight
  • Red Hat Ansible Modules

Connections:

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager I
  • Nagios Core
  • Nagios XI
Security
  • TPM 1.2/2.0, TCM 2.0 optional
  • Cryptographically signed firmware
  • Silicon Root of Trust
  • Secure Boot
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
  • System Erase
I/O & Ports
  • Network options:
    • 4 x 1GbE
    • 2 x 10GbE + 2 x 1GbE
    • 4 x 10GbE
    • 2 x 25GbE
  • Front ports:
    • 1 x Dedicated iDRAC direct USB
    • 1 x USB 2.0
    • 1 x USB 3.0 (optional)
    • 1 x Video
  • Rear ports:
    • 1 x Dedicated iDRAC network port
    • 1 x Serial
    • 2 x USB 3.0
    • 1 x Video
  • PCIe: 3 x Gen3 slots all x16
  • Video Card: 2 x VGA
Accelerator options Up to 3 single-width GPU (NVIDIA T4) or up to 1 FPGA
Supported operating systems
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server LTSC with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
OEM-ready version availabe From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.


Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.


Support Services


Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.


Deployment Services


Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.


Training & Certification

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.


Documentation:

Dell EMC PowerEdge R640 Datasheet (.PDF)
