Dell EMC PowerEdge XR12
Compact, ruggedized, and certified for conditions at the edge

Dell Storage Products
Dell PowerEdge Rack Servers
Dell EMC PowerEdge XR12 Rack Server
#PE-XR12
Get a Quote!

More pricing below, click here!

Overview:

Keep your innovation flowing with the Dell EMC PowerEdge XR12, the latest 2U server that offers no-compromise capabilities for space-constrained, rugged conditions.

The Dell EMC PowerEdge XR12 server offers 3rd generation Intel Xeon Scalable processors and it’s built for challenging environments, including telecommunications, military, retail, and restaurants.

Innovate at scale with challenging and emerging workloads

The new Dell EMC PowerEdge XR12 is a ruggedized, marine compliant 2U server. Only 16 inches/400 mm deep, it offers new ways to:

  • Boost services at the edge: The XR12 offers up to 36 x86 cores, support for accelerators, DDR4, PCIe 4.0, persistent memory and up to 6 drives
  • Cope with challenges: Certified rugged for telco and defense applications, including dust, extreme temperatures, shock, vibration, and other environmental variants
  • Add versatility without compromise: With reduced depth and front and rear port options that support reverse air flow, it gives administrators new flexibility without expensive retrofits or HVAC updates
  • Improve longevity: built for long life so organizations can offer game-changing services without downtime and disruption

Built-in protection through a complete portfolio of solutions

From the silicon and supply chain all the way to asset retirement, know that your servers are safe and secure with innovative Dell EMC and Intel technologies that give you the confidence of cyber resilience.

  • Start strong with platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
  • Stay strong with continuous innovations that bolster cyber resilience, like OpenManage Secure Enterprise Key Manager and Automatic Certificate Enrollment
  • Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Features:

Power business insights at the edge

The new Dell EMC PowerEdge XR12 is a ruggedized, MIL-STD and NEBS Level 3 compliant 2U server. At only 16 inches/400mm deep it offers accelerator-based performance outside the data center.

Support new services in challenging locations

The Dell EMC PowerEdge XR12 is a compact, 2U ruggedized and certified server for conditions outside the data center. Designed for telco, defense, remote office, back office and retail applications, the PowerEdge XR12 is built to withstand dust, extreme temperatures, shock, vibration, and other environmental variants.

  • Boost performance at the edge with up to 36 x 86 cores, support for accelerators, the latest memory and drive technologies.
  • Add versatility with reduced depth and front and rear port access options.
  • Offer game-changing services without downtime and disruption.
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools for on-premises, edge and cloud environments.

Systems Management and Security Solutions


OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.


Technical Specifications:


Dell EMC PowerEdge XR12 Specifications
Processors One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
Memory
  • Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s
  • Up to four Intel Optane PMem 200 Series slots, 512 GB max
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal controllers (RAID): PERC H755, PERC H345, S150
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB
  • External PERC (RAID): PERC H840
  • 12 Gbps SAS HBAs (non-RAID): internal- HBA355i, external-HBA355e
Drive bays 6 x 2.5-inch SATA/SAS/NVMe (SSDs) max 92 TB
Power supplies
  • 1400 W Platinum AC/240 HVDC
  • 1100 W DC/-48 - (-60) V
  • 800 W Platinum AC/240 HVDC
Cooling options Air cooling
Fans
  • High Performance GOLD fans
  • Six cold swap fans
Dimension Rear Accessed configuration Height: 42.8 mm (1.68 inches)
  • Height: 86.8 mm (3.41 inches)
  • Width: 482.6 mm (19 inches)
  • Depth: 400 mm (15.74 inches) Ear to rear wall
    • 477 mm (18.77 inches) with bezel
    • 463 mm (18.22 inches) without bezel

Front Accessed configuration

  • Height: 86.8 mm (3.41 inches)
  • Width: 482.6 mm (19 inches)
  • Depth: 400 mm (15.74 inches) Ear to rear wall
    • 553 mm (21.76 inches) with bezel
    • 463 mm (18.22 inches) without bezel
Form Factor 2U rack server
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC Service Module
Bezel Optional LCD or Security Bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections OpenManage Integrations:
  • BMC Truesight
  • Microsoft System Center
  • Redhat Andible Modules
  • VMware vCenter and vRealize Operations Manager

OpenManage Connections:

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Editio
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 4 x 25 GbE SFP+ LOM
GPU Options
  • 2 x 70 W or 150 W SW
  • 2 x 300 W DW

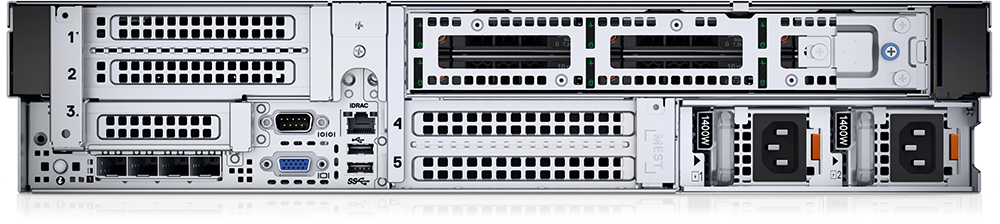

Ports For Rear Accessed configuration
  • Front Ports:
    • 1 x iDRAC Direct (Micro-AB USB) port
    • 1 x USB 2.0
  • Internal Ports
    • 1 x USB 3.0
  • Rear Ports:
    • 1 x USB 2.0
    • 1 x iDRAC dedicated port
    • 1 x Serial port
    • 1 x USB 3.0
    • 1 x VGA

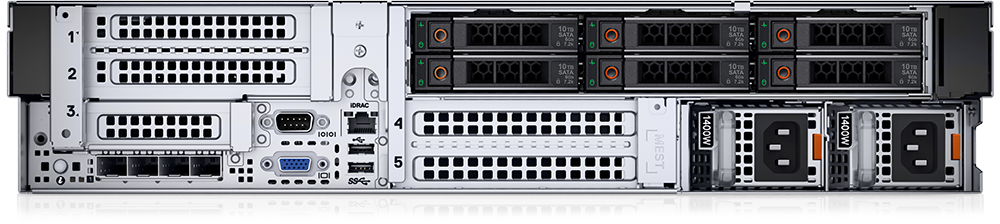

For Front Accessed configuration

  • Front Ports
    • 2 x USB 2.0
    • 1 x iDRAC dedicated port
    • 1 x USB 3.0
    • 1 x Serial port
    • 1 x VGA
    • 1 x iDRAC Direct (Micro-AB USB) port
  • Rear Ports
    • N/A
  • Internal Ports
    • 1 x USB 3.0
PCIe 5 x PCIe Gen4 slots
Operating Systems & Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
  • RHEL Realtime
OEM-ready version availabe From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.


Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.


Support Services


Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.


Deployment Services


Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.


Training & Certification

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.


Documentation:

Dell EMC PowerEdge XR12 Datasheet (.PDF)

Pricing Notes:

  • Pricing and product availability subject to change without notice.
