Dell PowerEdge XR4510c
1U Server Sled for XR4000 chassis
The Dell PowerEdge XR4510C is a 1U high-density server that enables scalability at the edge with a sled-based architecture and multiple mounting options.
Dell Technology’s shortest-depth edge server
The new Dell PowerEdge XR4000 is a 2U server with an innovative sled-based design. Dell’s shortest depth server to date is purpose-built for the edge; delivering high-performance compute and ultimate deployment flexibility in two new chassis form factors.Process and analyze data at the point of capture. Designed for workloads at the Edge including virtual desktop integration (VDI), Machine vision, Video surveillance, vSAN/VM, Point-of-sale and Data compression.
New Nano Server
- Create a self-contained 2-node VM cluster in a footprint not much larger than a shoebox with dell Nano Witness Server included in-chassis
- Rackable chassis supports up to 4 separate server nodes in a single 2U chassis
- Storage up to 12 x M.2 NVMe for total capacity of 45Tb per sled
- Uses Intel Xeon D with up to 20 cores per node for ultimate edge performance
- Reduce service complexity with a sled-based chassis that allows for a ‘pull-replace-repair’ model
- Scale when you need it by adding sleds as your operation demands grow
Purpose-built for the Edge
- Can operate in temp ranges from -5C to 55C and is rated to MIL 810H and NEBS Level 3
- Gain ultimate deployment flexibility with optional ‘stackable’ and ‘rackable’ chassis with options to mount on walls or place on shelves when space is at a premium
- Withstand dusty and harsh environments while providing extra physical security with an optional lockable intelligent filtered bezel
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 locations and backed by our 60K+employees and partners.
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.
Compute where you need it
Stack and clip two chassis together for greater performance and flexibility for your edge deployments.
Gain flexibility with the multi-node 1U compute sled

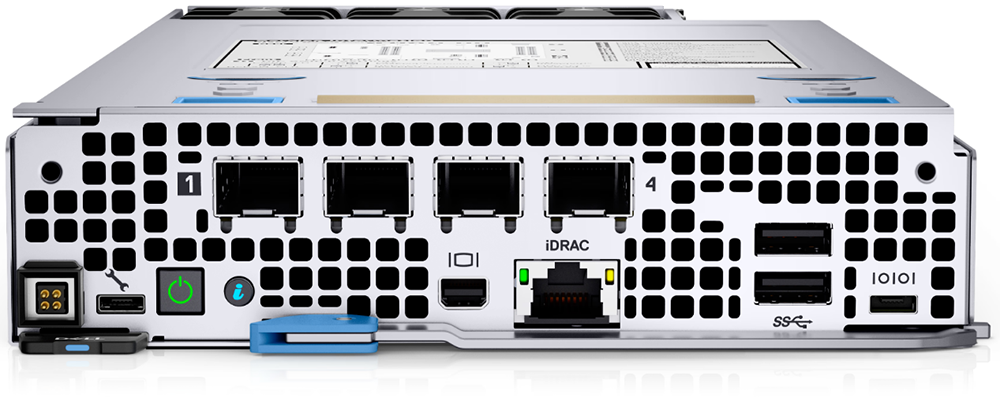

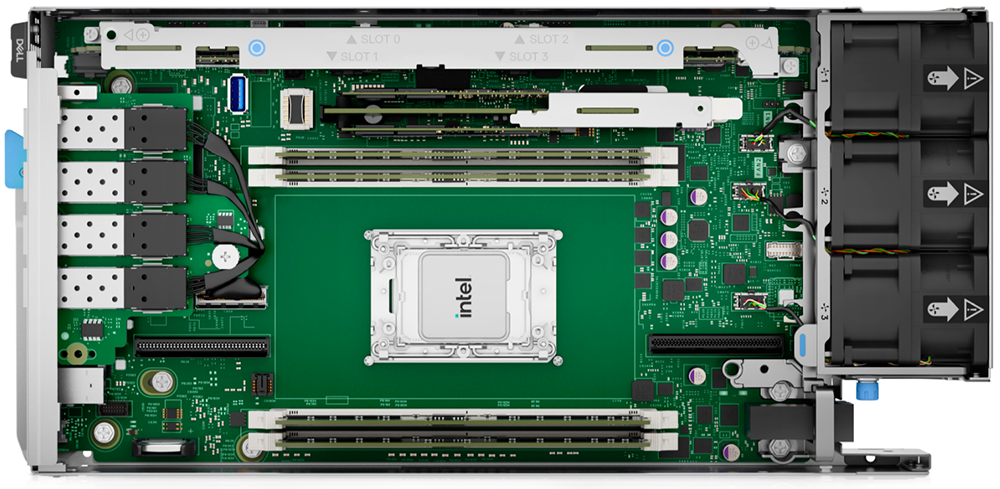

Built for unpredictable, rugged deployments, the dense 1U, PowerEdge XR4510c enables scalability at the edge. The short depth server can fit in the rackable or stackable chassis and save much needed floor space.
- Up to 4 x M.2 NVMe drives, from 480GB up to 3.84TB/ea
- Up to 2 x M.2 NVMe BOSS N1 ET
- 4 x memory slots; up to 512GB total
- 4 x SFP from CPU
Systems Management and Security Solutions
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
|Dell PowerEdge XR4510c Specifications|
|Processors||1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores|
|Storage controllers||Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB|
|Chassis||XR4000r and XR4000z|
|Sleds||XR4510c, XR4520c and optional XR4000w|
|Hot Swap Redundant Power Supplies||
|Fans||Up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds|
|Bezel||Security bezel on XR4000r and XR4000z|
|Network I/O board||
|GPU||Up to 2 x 150W single-width GPUs or 1 x 250W double-width GPU in XR4520c|
|Operating Systems & Hypervisors||
Support & Services:
Dell Technologies offers complete end-to-end services
Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.
Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
Training & Certification
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
- Pricing and product availability subject to change without notice.
