Overview
The Dell PowerEdge XR4520C is a 2U high-density server adding GPU, NIC, and extra storage capability to the XR4000 chassis family.
The Dell PowerEdge XR4000 is a high-performance server designed and optimized for edge use cases like
- Virtualization Desktop Infrastructure (VDI)
- Virtual Machines
- Video surveillance
- vSAN/VM
- Point of sale
- Data communication
Dell Technology’s shortest-depth edge server
The new Dell PowerEdge XR4000 is a 2U server with an innovative sled-based design. Dell’s shortest depth server to date is purpose-built for the edge; delivering high-performance compute and ultimate deployment flexibility in two new chassis form factors.Process and analyze data at the point of capture. Designed for workloads at the Edge including virtual desktop integration (VDI), Machine vision, Video surveillance, vSAN/VM, Point-of-sale and Data compression.
New Nano Server
- Create a self-contained 2-node VM cluster in a footprint not much larger than a shoebox with dell Nano Witness Server included in-chassis
- Rackable chassis supports up to 4 separate server nodes in a single 2U chassis
- Storage up to 12 x M.2 NVMe for total capacity of 45Tb per sled
Multi-node design
- Uses Intel Xeon D with up to 20 cores per node for ultimate edge performance
- Reduce service complexity with a sled-based chassis that allows for a ‘pull-replace-repair’ model
- Scale when you need it by adding sleds as your operation demands grow
Purpose-built for the Edge
- Can operate in temp ranges from -5C to 55C and is rated to MIL 810H and NEBS Level 3
- Gain ultimate deployment flexibility with optional ‘stackable’ and ‘rackable’ chassis with options to mount on walls or place on shelves when space is at a premium
- Withstand dusty and harsh environments while providing extra physical security with an optional lockable intelligent filtered bezel
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more – available across 170 locations and backed by our 60K+employees and partners.
Features
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.
Compute where you need it
Stack and clip two chassis together for greater performance and flexibility for your edge deployments.
Gain flexibility with the multi-node 2U compute sled

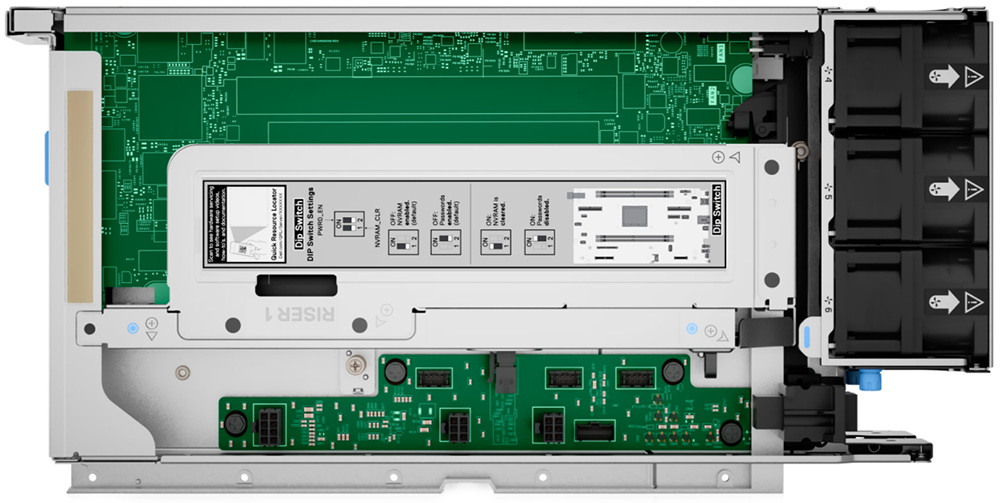

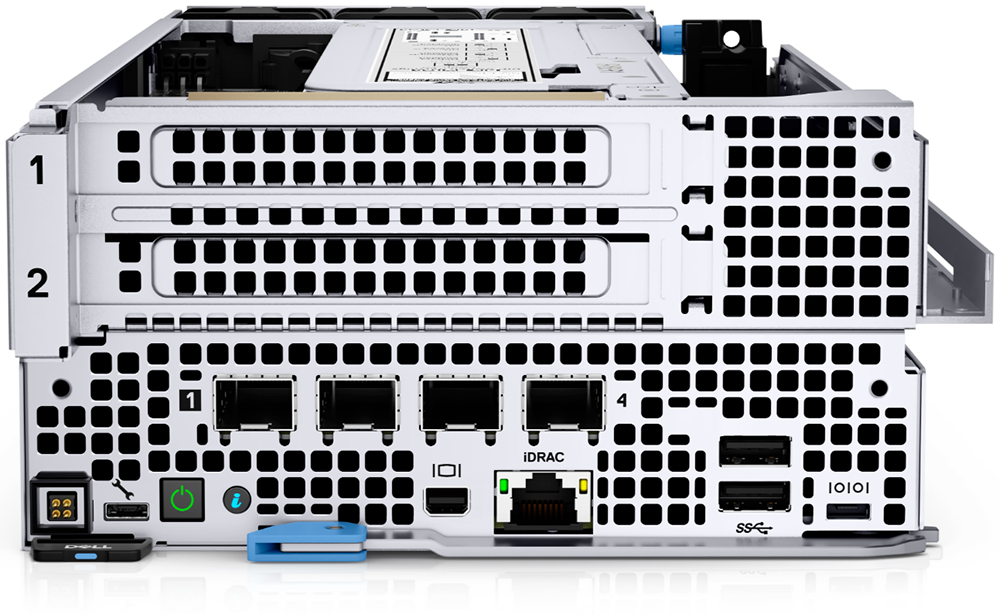

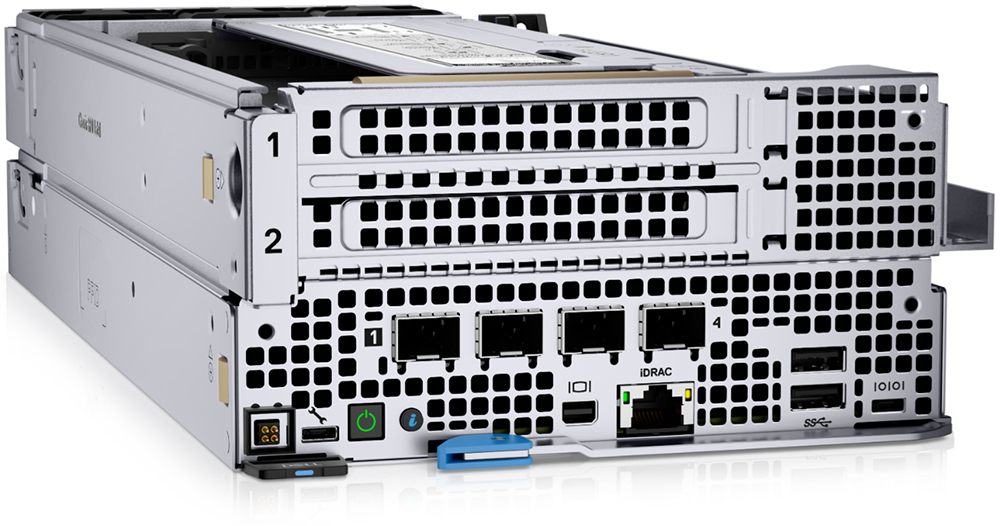

Built for the edge, the 2U high-density PowerEdge XR4520c supports GPUs, NIC and extra storage capacity. Designed for deployment flexibility, it can fit in the rackable or stackable chassis and save much needed floor space.
- Up to 4 x M.2 NVMe drives, from 480GB up to 3.84TB/ea
- Up to 2 x M.2 NVMe BOSS N1 ET
- 4 x memory slots; up to 512GB total
- 4 x SFP from CPU
- 2 x 16 PCIe Gen 4 Lanes; 2 FHFL cards; up to 250W combined; NVIDIA A2, A30 support; SFP & BaseT NIC Options
- Optional +8 x M.2 NVMe storage drives (4 x per x 16 slot); 12 x M.2 NVMe total
Systems Management and Security Solutions
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organizations automate their server lifecycles, optimize operations and scale efficiently.
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Technical Specifications
| Processors | 1 x 3rd Generation Intel Xeon D Scalable processor with up to 20 cores |
|---|---|
| Memory |
|
| Storage controllers | Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): 2 x M.2 SSDs 480 GB or 960 GB, USB |
| Chassis | XR4000r and XR4000z |
| Sleds | XR4510c, XR4520c and optional XR4000w |
| Hot Swap Redundant Power Supplies |
|
| Fans | Up to 3 Standard (STD) cabled cooling fans with reverse and normal air-flow in XR4510c and XR4520c sleds |
| Dimension |
|
| Form Factor |
|
| Embedded management |
|
| Bezel | Security bezel on XR4000r and XR4000z |
| OpenManage Software |
|
| OpenManage Integrations |
|
| Security |
|
| Network I/O board |
|
| GPU | Up to 2 x 150W single-width GPUs or 1 x 250W double-width GPU in XR4520c |
| Ports | Front ports
Internal port
|
| PCIe | 2 x16 Gen4 (x16 connector) full height, full length |
| Operating Systems & Hypervisors |
|
