Dell PowerScale F710 All-Flash NAS Storage
Accelerate demanding file workloads with extreme performance and efficiency

Overview:

Our next-generation PowerScale F710, leveraging PowerEdge R660, delivers high performance and improved density in a 1U platform with up to 10 all-flash NVMe SSD drives per node. The F710 allows you to scale raw storage from 38 TB to 307 TB per node and up to 77 PB of raw capacity per cluster. The F710 includes in-line compression and deduplication, with Energy Star certification coming soon. The minimum number of PowerScale nodes per cluster is three while the maximum cluster size is 252 nodes. The F710 is best suited for Generative AI and AI workloads, as well as high performing vertical workloads like, media and entertainment, healthcare and life sciences, high frequency trading, and EDA workloads.

Scale-out storage that is ready for any workload

As your business changes, your infrastructure needs to change with it. Be ready for what's coming next:

Dell PowerScale All-Flash Platforms

The PowerScale all-flash nodes co-exist seamlessly in the same cluster with your existing PowerScale or Isilon nodes to drive your traditional workloads and even the most modern applications like Generative AI.

It’s not just data, it’s your business

A large portion of your data is unstructured data and that dataset is growing exponentially – not just in the datacenter but at the enterprise edge and in the cloud. PowerScale OneFS powered scale-out storage solutions are designed for organizations that want to manage all their data, not their storage. Our storage systems are powerful yet simple to install, manage and scale to virtually any size. The storage includes a choice of PowerScale and Isilon all-flash, hybrid or archive nodes to meet the most demanding business needs. And, unlike traditional enterprise storage, these solutions stay simple no matter how much storage capacity is added, how much performance is required or how business needs change in the future.

In a world where unstructured data is growing rapidly and taking over the data center, organizations are looking for ways to get more out of their data. Whether it is driving innovation, getting to market faster or creating differentiation, they want the data to start creating value. Instead of thinking of destinations for your data, you think about what the data is going to be used for, who will be using it and how the data will help you solve for their business needs. When you have a data first mindset, the goal is to get any data to where it needs to be for business needs. Whether it is all-flash Edge offerings or the cloud to take advantage of the tools and access, data must be located where it needs to be for the business

With OneFS powered clusters consisting of PowerScale or Isilon nodes, you can eliminate storage silos, consolidate all your unstructured data, store petabytes of file data and analyze them in a data first world. With up to 252 nodes in a cluster, you can scale both capacity and performance in a few minutes to meet your specific business needs—all without any additional IT burden. With the performance of all-flash node that are configured with NVMe, you can drive demanding workloads like Artificial Intelligence, Machine Learning and Deep Learning.

Features:

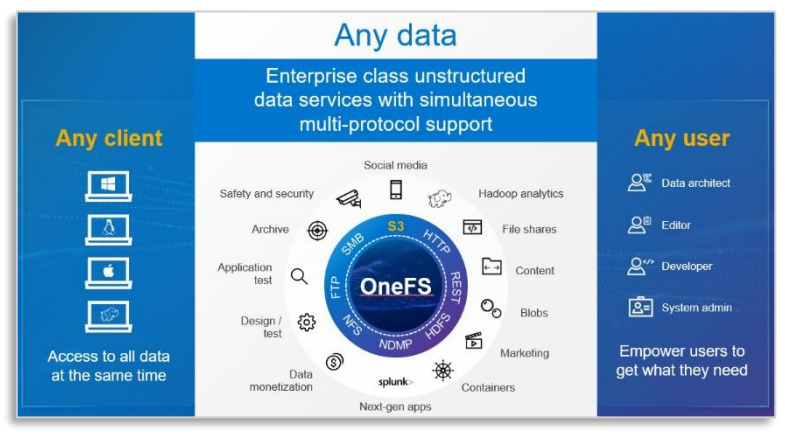

OneFS Operating System Powers Scale-Out Storage Solutions

The OneFS operating system provides the intelligence behind the highly scalable, high–performance modular PowerScale storage solution that can grow with your business. With support for various flash technologies offered in NVMe SSD, OneFS can help you accelerate the most demanding processes and workflows like Generative AI, with flexible scaling to handle massive growth and the highest levels of data protection. You can drive workloads like Artificial Intelligence, Machine Learning and Deep Learning with the performance of our all-flash nodes configured with NVMe.

Orchestrated by OneFS, all components in a cluster work to create a unified pool of highly efficient storage – with a storage utilization rate of up to 80 percent. With SmartDedupe data deduplication, you can further reduce your data storage requirements. The PowerScale F910, F900, F710, F600, F210, and F200 all-flash platforms, H700 and H7000 hybrid platforms and A300 and A3000 archive platforms deliver improved data reduction with features like inline compression and deduplication to dramatically increase the effective storage capacity and density of your storage solution. The unmatched efficiency of the storage systems means that less physical storage and space is required to house the same amount of data – reducing both initial capital outlay and ongoing costs, such as those related to power and cooling. With the OneFS AutoBalance function, you can quickly and easily add nodes without downtime, manual data migration, or application logic reconfiguration, saving precious IT resources. Since PowerScale storage is so easy to manage, it requires fewer IT resources for storage administration than traditional storage systems, which further reduces overall operating costs. Further streamline your storage infrastructure by consolidating large-scale unstructured data assets and eliminating silos of storage.

Drive Human Progress with PowerScale Storage Appliances

AI - Unleashed
PowerScale is the foundation for building an integrated and optimized IT infrastructure for AI initiatives, from POC to production. The integration and optimization showcased includes PowerScale, PowerEdge, PowerSwitch and Dell Precision Data Science Workstations.

Imagination - Unlimited
Ideal for companies of any size from small VFX houses to multi-national broadcasters, Dell EMC PowerScale storage provides a foundation for storytelling offering secure collaboration, modular expansion, flexible consumption models and easy cloud integration, all with management tools spanning multiple platforms.

Sequencing - Unbounded
Dell EMC Unstructured Data Solutions portfolio is a key aspect of a next-generation sequencing environment by delivering performance, being easy to manage, and accelerating whole-genome sequencing.

Enterprise Data Protection and Management Software

Massive stores of data present unique management challenges including disaster recovery, quota management and offsite replication. Isilon data protection and management software provides you with powerful tools that help you protect your data assets, control costs and optimize the storage resources and system performance of your big data environment.

Software	Feature	Description
SmartDedupe	Data management	Increase efficiency and reduce storage capacity requirements with deduplication of redundant data across multiple sources
CloudIQ	Data management	Simplify the storage management tasks of PowerScale, Isilon and other Dell hardware with predictive analytics capabilities from a single console
DataIQ	Data management	Locate, access and manage data and gain a holistic view across heterogeneous storage systems with a single pane of glass
SmartQuotas	Data management	Assign and manage quotas at the cluster, directory, user, and group levels
InsightIQ	Performance management	Performance monitoring and reporting
SnapshotIQ	Data protection	Protect data efficiently and speed the recovery of critical data with ondemand snapshot restores
SYNCIQ	Data replication	Securely replicate data sets to multiple sites for reliable disaster recovery and use push-button failover and failback
SmartLock	Data retention	Protect your critical data against accidental, premature, or malicious alteration or deletion and meet compliance and governance needs
SmartConnect	Data access	Enable client connection load balancing and the dynamic failover and failback of client connections
CloudPools	Resource management	Seamless tiering of cold or frozen data to public or private cloud providers
SmartPools	Resource management	Tiered storage strategy to optimize storage performance and efficiency

Technical Specifications:

PowerScale F710 All-NVMe Specifications
Attributes & Options	3.84 TB SSD	7.68 TB SSD	15.36 TB SSD	30.72 TB SSD
Raw node capacity	38 TB	77 TB	154 TB	307 TB
SSD drives (2.5") per node	10	10	10	10
Self-Encrypting drive (SED SSD) FIPS 140-2 compliant option	Yes (requires OneFS 9.7)
Operating system	PowerScale OneFS 9.7 or later
ECC memory (per node)	512 GB
Front-end networking (per node)	Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28) Dual port 100G NIC supporting 40G or 100G connections
Infrastructure networking (per node)	Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
Max Power Consumption @ 200~240V (per node)1	769 Watts (@25°C), 887 Watts (@35°C)
Typical thermal rating	2622 BTU/hr (@25°C), 3025 BTU/hr (@35°C)
Product Attributes
Scale-Out Architecture	Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace and single filesystem
Modular Design	Four self-contained Isilon nodes include server, software, HDDs and SSDs in a 4U rack-mountable chassis. 1U or 2U Rack-mountable PowerScale node that integrates into existing PowerScale and Isilon clusters with backend Ethernet or InfiniBand connectivity
Operating System	PowerScale OneFS distributed file system creates a cluster with a single file system and single global namespace. It is fully journaled, fully distributed, and has a globally coherent write/read cache
High Availability	No-single-point-of-failure. Self-healing design protects against disk or node failure; includes back-end intra-cluster failover
Scalability	A cluster can scale up to 252 nodes. Minimum number of Isilon nodes per cluster is four. Minimum number of PowerScale all-flash nodes per cluster is three. Add nodes to scale performance and capacity
Data Protection	FlexProtect file-level striping with support for N+1 through N+4 and mirroring data protection schemes
NDMP Backup	Supports two-way NDMP backups for effective data protection.
Data Retention	SmartLock policy-based retention and protection against accidental deletion
Security	File system audit capability and STIG hardening to improve security and control of your storage infrastructure and address regulatory compliance requirements. PowerScale Cyber Protection powered by Superna Ransomware Defender can be included.
Efficiency	SmartDedupe data deduplication option, which can reduce storage requirements by up to 35 percent. Inline data reduction and compression.
Automated Storage Tiering	Policy-based automated tiering options including SmartPools and CloudPools software to optimize storage resources and lower costs.
Network Protocol Support	NFSv3, NFSv4, NFSoRDMA, NFS Kerberized sessions (UDP or TCP), SMB1 (CIFS), SMB2, SMB3, SMB3-CA, Multichannel, HTTP, FTP, NDMP, SNMP, LDAP, HDFS, S3, ADS, NIS reads/writes.
Data Replication	SyncIQ fast and flexible one-to-many file-based asynchronous replication between clusters. SmartSync provides efficient file to file and file to object data movement.
Environmental Specification - Power
Class	Platinum
Frequency	50/60 Hz
Voltage	100-240V, 12 A – 8A
Operating Environment	Compliant with ASHRAE A3 data center environment guidelines
Dimensions	Height: 42.8mm (1.68”) Width: 482mm (18.97") Depth: 822.88mm (32.39”) with bezel
Weight	49.6 lbs (22.5 kg)
Minimum Service Clearances	Front: 40” (88.9 cm), rear: 42” (106.7 cm)

Cluster Attributes	PowerScale F210	PowerScale F610	PowerScale F910
Number of nodes	3 to 252	3 to 252	3 to 252
Raw node capacity	23 TB to 15 PB	115 TB to 77 PB	276 TB to 186 PB
Rack units	3 to 252	3 to 252	3 to 252

Safety and EMI Compliance

This Information Technology Equipment is compliant with the electromagnetic compatibility (EMC) and product safety regulations/standards required by the countries in which the product is sold. EMC compliance is based on FCC part 15, CISPR22/CISPR24 and EN55022/EN55024 standards, including applicable international variations. EMC compliant Class A products are marketed for use in business, industrial, and commercial environments. Product Safety compliance is based on IEC 60950-1 and EN 60951-1 standards, including applicable national deviations.

This Information Technology Equipment is in compliance with EU RoHS Directive 2011/65/EU.

¹ Values at <25° C are reflective of more steady state maximum values during normal operation

Solutions & Services:

Dell EMC offers complete end-to-end services

Optimizing the IT lifecycle is vital. Dell EMC has expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.

Documentation:

Dell EMC PowerScale Datasheet (.PDF)

Dell EMC PowerScale All-Flash Nodes Spec Sheet (.PDF)
