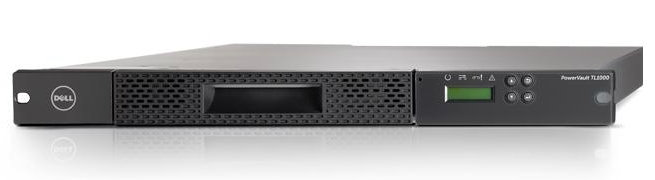

Dell PowerVault TL1000 Tape Autoloader
Automate backups and save time with an affordable, high-density tape autoloader featuring a compact 1U design and remote management
Sorry, this product is no longer available, please contact us for a replacement.
The Dell PowerVault TL1000 tape autoloader brings high density and remote management backup capabilities to small and medium businesses in a compact, affordable 1U form factor.
Automated backup delivers true value
The Dell™ PowerVault TL1000 tape autoloader is designed to maximize the storage capacity available in a space-saving 1U rack-mount chassis, making it ideal for consolidating multiple or remote application servers for unattended, automated backup. The affordable PowerVault TL1000 delivers features found previously only in high-end libraries. A simple design allows you to manage up to nine total cartridges. Plus, you have a choice of equipping the autoloader with one LTO-7, LTO-6, LTO-5 or LTO-4 tape drive.
Administrative ease can save time and money
The PowerVault TL1000 is designed to automate backup tasks so that administrators can focus on other efforts. Remote management through a web-based browser provides the ability to oversee backup operations from a remote device. Plus, automatic cartridge swapping helps reduce the risk for human error sometimes caused by manually switching cartridges. The PowerVault TL1000 can also simplify large or frequent backup or archive scenarios.
Crafted for easy installation and use, the PowerVault TL1000 can quickly be implemented into existing infrastructures. The removable ninedata-slot magazine enables fast bulk tape loading, while the standard barcode reader helps save time allowing administrators to randomly or sequentially access their cartridges. Library-managed encryption is available with LTO-6 and later generation technology for added security at point-of-sale only.
A validated backup solution designed to ensure peace of mind
The PowerVault TL1000 offers seamless integration with customer infrastructures. It works with different operating systems such as Microsoft Windows and Linux. To help ensure compatibility and easy implementation, the PowerVault TL1000 is Dell certified, tested and validated for use on Dell hardware including PowerEdge servers and select storage devices. It is also backed by Dell technical support for the length of your limited warranty.1 The PowerVault TL1000 is a premier tape autoloader for busy administrators, delivering dense storage capacity in a 1U form factor at an affordable price.
Easy, automated backup
With remote management and time-saving automation, the PowerVault TL1000 autoloader is an ideal choice to simplify large or frequent backups.
- Convenient remote management — Monitor and manage from anywhere using a web-based browser.
- Time-saving automation — Eliminate the need to manually load and unload single tape cartridges to save time and reduce the risk for error.
- Fast installation — Simply unpack and rack the unit, connect the SAS cable, load tape media and power on the TL1000 to get started.
- Seamless integration — Easily integrate the TL1000 into your network and use it with Windows or Linux® operating systems.
Dependable, high-capacity storage
Deploy a reliable backup solution with exceptional storage density and efficiency.
- Back up more data in less space with nine cartridges in a compact 1U chassis.
- Efficiently add or remove cartridges with the removable tape magazine and support continuous operation when inserting or removing cartridges with the I/O station.
- Deploy a certified, tested and validated solution compatible with PowerEdge servers and select storage devices and supported by common independent software vendor (ISV) packages.
- Support lights-out operations for unattended, automated backup.
Cost effective and future ready
Help reduce acquisition, administration and service costs with an affordable, future-ready solution.
- Minimize acquisition expenses with cost-effective hardware, media and software.
- Ensure long-term value providing forward compatibility to protect your investments.
- Help lower administration costs with fast bulk loading and unloading of tapes using removable magazines.
|Dell PowerVault TL1000 Technical Specification|
|Encryption||Library-managed encryption available with LTO-6 and later generation drives at point-of-sale only|
|Height||1.73 in (44 mm)|
|Width (chassis/bezel)||17.52 in/19.02 in (445 mm/483 mm)|
|Length (depth)||33.46 in (850 mm)|
|Weight||28.66 lb (13 kg)|
|Supported tape drive technologies||LTO-7, LTO-6, LTO-5, LTO-4|
|Code updates||RMU or host bus for drives
RMU only for library code updates
|Expansion capability||Ships standard with 9 cartridge magazine|
|Network interface||ADI T-10
IPv6 Phase 1 & 2 Ready and DoD APL
|User interface||Operator Control Panel
Located on the front of the TL1000 tape library. Use the LCD panel to check system status, run diagnostics, check and set configurations, verify drive operations, run an inventory and manage the system.
Remote Web Management (RMU)
Access the web-based administration through a 10/100 BASE-T connection and any standard web browser. Use RMU to check system status, run diagnostics, view system logs, check and set configurations, verify drive operations, run an inventory, manage the system and upgrade drive and library firmware.
|Temperature||50 to 95 degrees F, 10 to 35 degrees C|
|Humidity||20% to 80% RH (non-condensing)|
|Electrical power||1.3 amps at 100 VAC, 0.7 amps at 240 VAC|
|AC power voltage||100-127 VAC; 200-240 VAC (4-2 A)|
|Line frequency||50-60 Hz|
