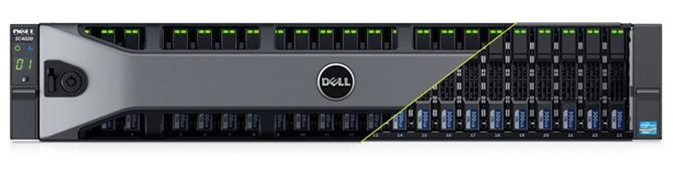

Dell SC4020 All-In-One Array
High performance that fits your budget, including all-flash
Sorry, this product is no longer available, Please contact usfor a replacement.
Intelligent, self-optimizing array in an affordable, all-in-one form factor. Why choose between cost and competitive advantage? Best-in-class auto-tiering is now the economical choice.
In the past, advanced storage optimization techniques, available only on a huge scale, were the secret to big enterprise, big data success. The world’s largest companies could achieve massive business results while simultaneously enjoying the lowest TCO-per-GB of storage. Cost-saving auto-tiering and data migration capabilities, expensive to acquire, remained out of reach for the resource-strapped smaller businesses that needed them most.
Today, your organization can access these powerful techniques starting with a compact, affordable, yet feature-rich and scalable solution from Dell Storage.
SC Series Advantage For Every Business
SC4020 arrays are based on Dell’s award-winning SC8000 mid-range platform. Offering similar benefits at a smaller scale, the SC4020 may be deployed with any choice or combination of flash and traditional hard disk drives. Virtualized multi-tier storage policies are applied quickly and automatically, leveraging the unique characteristics of all your drives, and allowing you to target application-specific price and performance requirements with a minimum of planning or effort.
Dual redundant controllers, 24 internal drive slots, plus multiprotocol network, replication and expansion ports are all delivered in a space-saving 2U chassis, making the flexible SC4020 a true all-in-one solution. Add-on enclosures let you scale to over 1PB raw storage capacity per array; and when you’re ready, you can link multiple SC Series arrays in federated clusters under unified management — with non-disruptive data movement between arrays through the included Live Migrate feature.
Auto-tune Your Data Center For Maximum Performance And Cost Savings
Like the larger SC8000 or SC9000, SC4020 features innovative Data Progression technology that works in the background to provision and optimize data placement across all drives. Incoming writes are steered to the highest-performing tier at the fastest RAID level, providing an exceptional performance experience for your users. As data ages, it is automatically identified and moved to less expensive storage until it becomes more active again. Data is precisely where it’s needed, when it’s needed — resulting in an ideal blend of high IOPS and cost-savings.
Spend Less Time Configuring And Managing Storage
Dell’s fully virtualized Storage Center platform enables unprecedented levels of efficiency and automation. All available capacity is combined in a single pool by default — and since individual disks and volumes can support multiple RAID levels, pre-allocation of RAID groups is not required.
The performance and capacity of the entire pool is presented to all RAID levels simultaneously, each of which dynamically expands or contracts as needed based on real-time access patterns. Thin provisioning best practices are automatically enforced, ensuring the best drive utilization, with no administrative intervention required.
Designed And Optimized For Flash
SC4020 all-flash or hybrid SSD/HDD configurations can support multiple SSD tiers, combining the best attributes of write- and read-intensive drives. SC4020 all-flash solutions actually cost less than comparable 15K disk drive solutions — making it an easy choice to move 100% of your hot data to flash.1
Enhance Any Environment
SC4020 supports SANs natively, and with the Dell Storage FS8600 NAS front-end also supports file-based systems. Advanced features such as intelligent deduplication and compression, space-efficient snapshots, synchronous/asynchronous replication, data-at-rest encryption, and FastTrack drive optimization — along with world-class Dell Copilot Support2 — make the SC4020 a perfect complement to any Dell server installation. Regardless of your current infrastructure, this open standard array helps you begin your migration to a modern storage architecture in small, affordable increments.
In today’s global marketplace, the ability to efficiently store, manage, access and extract value from data is synonymous with business success. State-of-the-art storage virtualization is no longer a luxury — it is a key business requirement. Fortunately, the SC4020 now gives even small organizations and remote departments the self-optimizing resources necessary to succeed in a big data world. It’s just one more way Dell is redefining the economics of modern storage.
Product ConfigurationsInternal Storage
24 x 2.5” drive bays
Supported expansion enclosures
Dell SC200: 12 x 3.5” drive bays
Dell SC220: 24 x 2.5” drive bays
Dell SC280: 84 x 3.5” drive bays
Maximum drive count
192 (24 internal, plus 168 external)
Total storage capacity
1.054PB, more in federated systems1
Supported drive types
HDD: 15K, 10K, 7.2K RPM; SSD: write-intensive and read-intensive drives in SLC, MLC and TLC formats. Drive types can be mixed in the same system.
2 hot-swappable controller modules per SC4020 chassis
Intel® Xeon® Processor E3-1265L v2, 2.50GHz, 4 cores
32GB per SC4020 array (16GB per controller)
Network/server connectivity (front-end)
Fibre Channel model: 8 x 8Gb FC ports per SC4020 array (4 per controller) or 4 x 16Gb FC ports per SC4020 array (2 per controller); simultaneous multiprotocol support available with optional upgrade to firmware v6.6. Management/Replication ports may also provide two ports of front-end iSCSI network I/O per controller.
iSCSI model: 4 x 10Gb iSCSI ports per SC4020 array (2 per controller); additional iSCSI network connectivity available with optional upgrade to firmware v6.6. Management/Replication ports may also provide two more ports of front-end iSCSI per controller.
Internal drive connectivity (back-end)
Technical HighlightsProduct OS
Storage Center 6.5 or greater
All-flash, hybrid or HDD arrays
Policy-based migration based on real-time data usage, customizable 512KB-4MB page size.
Up to 3 primary (media-based) tiers total, up to 2 SSD tiers (write- and read-intensive SSDs)
User-defined profiles, option to “pin” volumes to any tier
RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist on a single array
Auto-provisions and dynamically restripes multiple RAID levels on the same tier; no need to pre-allocate RAID groups
Active by default on all volumes, operates at full performance across all features
Records changes only, snapshots auto-migrate to lower-cost storage
Intelligent deduplication and compression
Selectable option per volume on SSD and/or HDD tiers
Compression-only option also available
Synchronous/Asynchronous using FC or iSCSI
Federated multi-array systems
Live Migrate (included in base product) enables host-transparent data movement among arrays
Volume Advisor continually monitors federation to suggest optimal data placement based on custoizable capacity or performance load balancing policies
Dell Storage Manager provides data center-level viewpoint and control
Coexistence with PS Series arrays
Replication in either direction
Day-to-day management from a single interface
Thin import: space-efficient, non-disruptive data migration from PS Series arrays
Live Volume auto-failover, auto-repair
VMware Metro Stretch Cluster support
Microsoft® Azure Site Recovery
Application data protection
Restore host-side data from array in Oracle, Microsoft or VMware environments
Self-encrypting drives (SEDs) in SSD or HDD formats
Full Disk Encryption (FCE) based on AES-256
Drives certified to FIPS 140-2 Level 2
Key Management Server (KMS) options available for FIPS 140-2 Level 1, 2 and 3
External key manager support
Gemalto’s SafeNet KeySecure k460, SafeNet KeySecure k250, SafeNet KeySecure k150v
Thales EMS 200
Dell Storage Manager, formerly Enterprise Manager
Multi-array, multi-site, cross-platform management from single interface2
Microsoft PowerShell API
Host OS support
Microsoft® Windows Server®, Oracle® Solaris, HP®-UX, Oracle Linux, IBM® AIX®, Novell® NetWare, SLES, Apple, HPTru64, VMware®, Citrix® XenServer®, RedHat®
Third-party application integration
VMware, Oracle, Microsoft, IBM, OpenStack, Symantec, Commvault, Foglight, Docker (see SC Series Management spec sheet for more details)
VMware Metro Stretch Clusters
IBM VIOS Recognized
Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback
PowerPower/wattage: 2 hot-swappable 580W power supplies; 580W maximum power
Heat dissipation: 1,978 BTU/hr maximum
Voltage: 100-240 VAC
Frequency: 50/60 Hz
Amperage: 7.6-3.0 A
ChassisRack size: 2U
Height: 8.79 cm (3.46 inches)
Width: 48.2 cm (18.98 inches)
Depth: 54.68 cm (21.53 inches)
Weight at maximum configuration: 24 kg (53 lb)
Weight empty: 7 kg (15.4 lb)
Environmental Operating ConditionsOperating temperature: 50 - 95°F (10 - 35°C)
Non-operating temperature: -40 - 149°F (-40 - 65°C)
Operating humidity ranges (non-condensing): 10% to 80% with 29°C (84.2°F) maximum dew point
Non-operating humidity (non-condensing): 5% to 95% with 33°C (91°F) maximum dew point
Inlet type: NEMA 5-15/CS22.2, n°42
