Dell EMC PowerEdge R650
Compelling performance, high scalability, and density

Dell Storage Products
Dell PowerEdge Rack Servers

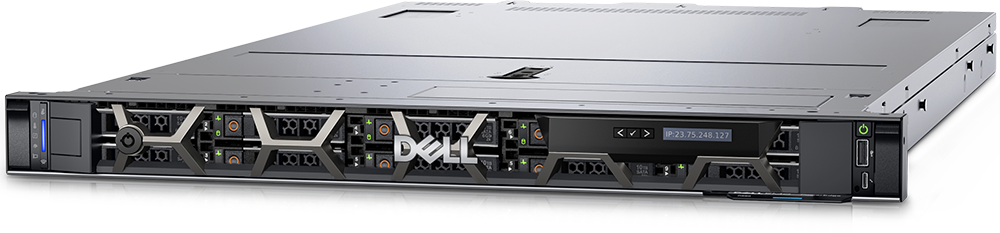

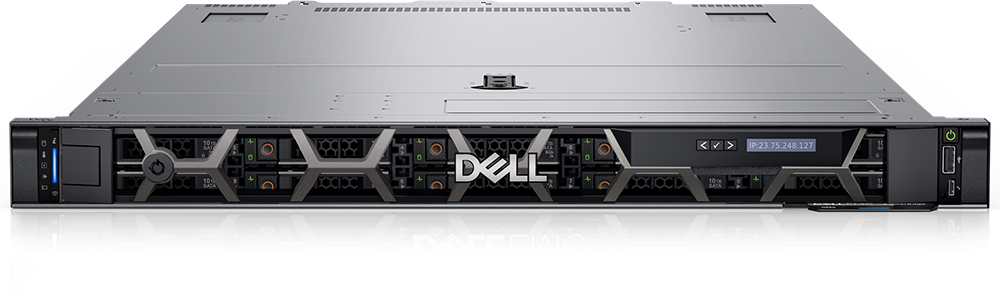

Dell EMC PowerEdge R650 Rack Server
#PE-R650
Get a Quote!

More pricing below, click here!

Overview:

The Dell EMC PowerEdge R650 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements – Ideal for:

  • Traditional corporate IT
  • Database and Analytics
  • Virtual Desktop Infrastructure
  • AI/ML and HPC

The Dell EMC PowerEdge R650, is a full-featured enterprise server, designed to optimize workloads performance and data center density. Enterprise server powered by 3rd generation Intel Xeon Scalable processors designed to optimize workload performance and data center density.

Innovate at scale with challenging and emerging workloads

The Dell EMC PowerEdge R650, powered by the 3rd Generation Intel Xeon Scalable processors is the optimal rack server to address application performance and acceleration. The PowerEdge R650, is a dual-socket/1U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R650 supports PCIe Gen 4 and up to 12 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R650 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, HighFrequency Trading, Traditional corporate IT, Virtual Desktop Infrastructure, and even HPC or AI/ML environments that require performance, and GPU support in a dense 1U form factor.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge R650 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
  • Maintain server firmware safety with digitally signed firmware packages
  • Prevent unauthorized configuration or firmware change with system lockdown
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Features:

Innovation engine to address emerging workloads

The Dell EMC PowerEdge R650, powered by 3rd Generation Intel Xeon Scalable processors, is designed to optimize workloads performance and data center density.


Optimal performance, high scalability, and data center density for demanding workloads

The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.

  • Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
  • Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives
  • Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
  • Optional Direct Liquid Cooling support to address high wattage processors

Systems Management and Security Solutions


OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.


Technical Specifications:


Dell EMC PowerEdge R650 Specifications

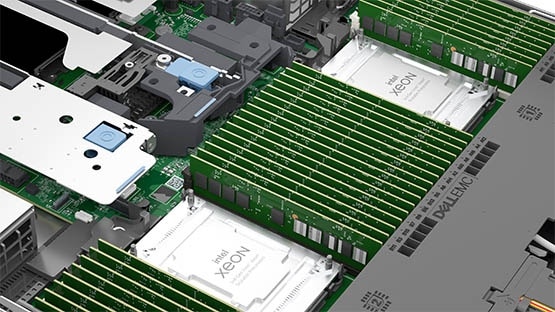

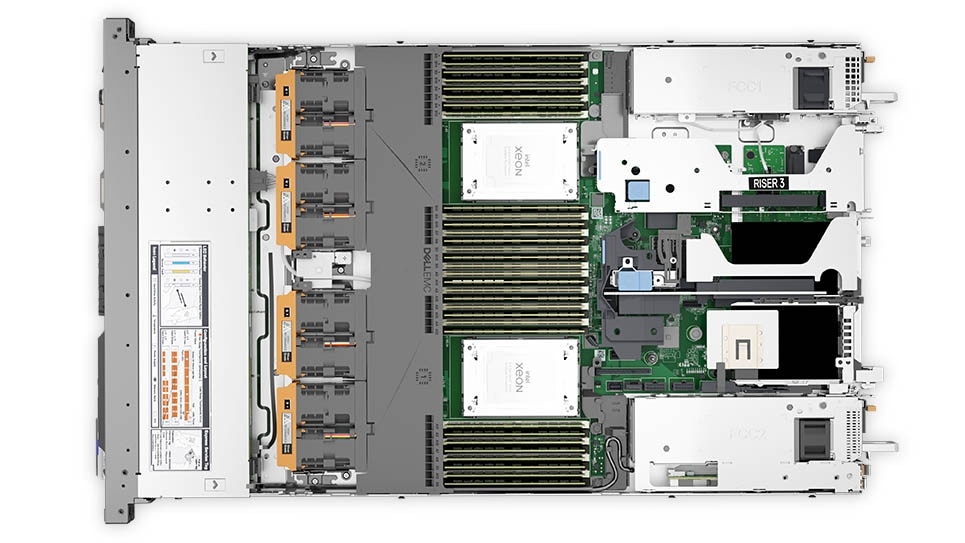

Processors Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Memory
  • 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s
  • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
  • Supports registered ECC DDR4 DIMMs only
Storage controllers
  • Internal Controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N
  • Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
  • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
  • External PERC (RAID): PERC H840, HBA355E

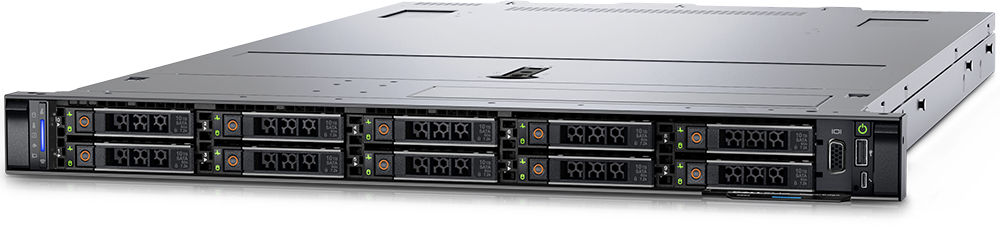

Drive bays Front bays:
  • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
  • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB

Rear bays:

  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Power supplies
  • 800 W Platinum AC/240 Mixed Mode
  • 1100 W Titanium AC/240 Mixed Mode
  • 1400 W Platinum AC/240 Mixed Mode
  • 1100 W DC -48 - 60 V
Cooling options Air cooling, optional processor liquid cooling
Fans
  • Standard fan/High performance SLVR fan/High performance GOLD fan
  • Up to four sets (dual fan module) hot plug fans
Dimension
  • Height – 42.8 mm (1.7 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 809 mm (31.85 inches) – without bezel and 822.84 mm (32.39 inches) – with bezel
Form Factor 1U rack server
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC Service Module
  • Quick Sync 2 wireless module
Bezel Optional bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Power Manager plugin
  • OpenManage SupportAssist plugin
  • OpenManage Update Manager plugin
Mobility OpenManage Mobile
Integrations and Connections OpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter and vRealize Operations Manager

OpenManage Connections

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
  • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network Options 1 x OCP 3.0 (x8 PCIe lanes)
GPU options Up to three 75 W single-width GPU
Ports Front Ports
  • 1 x Dedicated iDRAC Direct micro-USB
  • 1 x USB 3.0
  • 1 x VGA
Internal Ports
  • 1 x USB 3.0

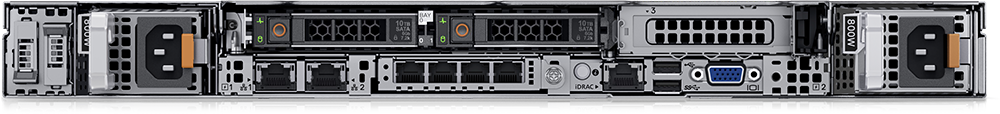

Rear Ports
  • 1 x USB 2.0
  • 1 x Serial (optional)
  • 1 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA (optional for liquid cooling configuration)
PCIe Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAP I/O modules) or 2 x PCIe (Gen4) full height slots
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
OEM-ready version availabe From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.


Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.


Support Services


Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.


Deployment Services


Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.


Training & Certification

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.


Documentation:

Dell EMC PowerEdge R650 Datasheet (.PDF)
