Dell EMC PowerEdge R6525
Ideal for high performance dense-computing environments

Dell Storage Products
Dell PowerEdge Rack Servers
Dell EMC PowerEdge R6525 Rack Server
#PE-R6525
Get a Quote!

More pricing below, click here!

Overview:

The PowerEdge R6525 provides a unique dense – 1U, dual-socket server - to address and scale traditional and emerging workloads like

  • High Performance Computing (HPC)
  • Virtual Desktop Infrastructure (VDI)
  • Virtualization

The Dell EMC PowerEdge R6525 Rack Server is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovations for dense compute environments to address traditional and emerging workloads and applications.

Deliver breakthrough performance, innovation and density for traditional and emerging workloads

The new Dell EMC PowerEdge R6525 is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovation for dense compute environments. It’s ideal for traditional and emerging workloads and applications. High-level features include:

  • 64 processing cores and faster data transfer speeds with PCIe Gen 4
  • Up to 3200MT/s memory speed to reduce latency and deliver faster response
  • Multi GPU support to accelerate end user VDI performance
  • Highest core count PE 1U server with cryptographic isolation between hypervisor and VMs

Increase efficiency and accelerate operations with an automated infrastructure

The Dell EMC OpenManage systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.**

Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
  • Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.

**Based on June 2018 Principled Technologies Report commissioned by Dell EMC, “Save time and IT effort resolving server hardware issues with ProSupport Plus and SupportAssist”, compared to Basic Warranty without SupportAssist.

Features:

Turn compute infrastructure into business advantages

The R6525 is a high density two-socket/1U platform specializing in data speed. The platform is perfect for OLTP workloads, running your e-commerce business efficiently. The R6525 is great for virtualization with impressive VMmark with vSAN benchmarks. Also, the R6525 has Ready Solutions available for HPC Life Sciences, Manufacturing, AI Retail loss prevention, and vSAN.


Deliver breakthrough performance, innovation and compute density

The Dell PowerEdge R6525 is a highly configurable, dual-socket 1U rack server that delivers outstanding balanced performance and innovation for dense compute environments. It’s ideal for traditional and emerging workloads and applications like high performance computing (HPC), dense VDI, and virtualization.

  • 64 processing cores and faster data transfer speeds with PCIe Gen4
  • Up to 3200MT/s memory speed to reduce latency and deliver faster response
  • Multi GPU support to accelerate end user VDI performance
  • Highest core count PowerEdge 1U server with cryptographic isolation between hypervisor and VMs

Systems Management and Security Solutions


OpenManage systems management

The Dell Technologies OpenManage systems management portfolio helps tame the complexity of your IT environment with tools and solutions to discover, monitor, manage, update, and deploy your PowerEdge infrastructure.

Intelligent Automation

PowerEdge and OpenManage solutions integrate tools across the portfolio to help organizations automate the server lifecycle, optimize operations, and scale efficiently.

Built-in security

PowerEdge servers are made with a cyber resilient architecture that builds in security at every phase of the product lifecycle, from the silicon root of trust and secured component verification, to signed firmware and drift detection, to BIOS recovery.


Technical Specifications:


Dell EMC PowerEdge R6525 Specifications
Processors Two 2nd or 3rd Generation AMD EPYC Processors with up to 64 cores per processor
Memory
  • Up to 32 x DDR4 Maximum RAM
  • RDIMM 2 TB
  • LRDIMM 4TB Max
  • Bandwidth up to 3200 MT/S
Availability Hot plug redundant Hard drives, Fans, PSUs
Storage controllers
  • PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA
  • PERC 11 – H755, H755N
  • Chipset SATA/SW RAID (S150): Yes
Drive bays Front bays:
  • Up to 4 x 3.5” hot plug SAS/SATA (HDD)
  • Up to 8 x 2.5” hot plug SAS/SATA (HDD)
  • Up to 12 x 2.5” (10 Front + 2 Rear) hot plug SAS/SATA/NVMe
  • Optional Internal: 2 x M.2 (BOSS)
  • Optional Rear: 2 x M.2 (BOSS-S2)
Power supplies
  • 800W Platinum
  • 1400W Platinum
  • 1100W Titanium
Fans Hot plug Fans
Dimension
  • Height: 42.8mm (1.7”)
  • Width: 434.0mm (17.1”)
  • Depth: 736.54mm (29”)
  • Weight: 21.8kg (48.06lbs)
Form Factor 1U rack server
Embedded management
  • iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • Quick Sync 2 wireless module
Bezel Optional bezel or security bezel
OpenManage Software
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manager
  • OpenManage Mobile
Integrations and Connections OpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware vCenter

OpenManage Connections

  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager I
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC 2 x 1 GbE LOM ports
Network Options OCP x16 Mezz 3.0 + 2 x 1GE LOM
GPU options Up to 2 Single-Wide GPU
Ports Front Ports
  • 1 x Dedicated iDRAC Direct micro-USB
  • 1 x USB 3.0
  • 1 x VGA

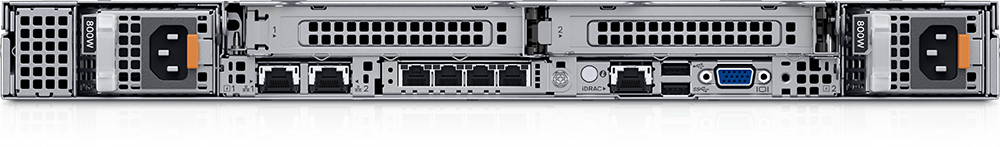

Rear Ports
  • 1 x Dedicated iDRAC network port
  • 1 x Serial (optional)
  • 1 x USB 3.0
  • 1 x VGA
PCIe 3 x Gen4 slots (x16) at 16GT/s
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
OEM-ready version availabe From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.

Support & Services:

Dell Technologies offers complete end-to-end services

Optimizing the IT lifecycle is vital. We have expert services for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.


Proactive Management and Monitoring (no charge)

Consulting

Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. Dell employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. Dell gives you the confidence that your project will be done right and on time.


Support Services


Support

Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.


Deployment Services


Deployment

ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.


Training & Certification

Training & Certification

Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.


Documentation:

Dell EMC PowerEdge R6525 Datasheet (.PDF)
